Gas + NAP
13175
NAP Ex Tc
1867
NAP Ex Gas Oil HDS
1264
KERO
4545
CDU
54500 BPSD
Feed 50000
Light Gas Oil
6915
Atmos Residue
25365
Gas Oil Ex TC
1484
LGO HDS
13980 BPSD
NAP HDS
19540
BPSD
DES LGO
8101
DES Kero
4539
Reformer Gas
(7.13mm Scf/D)
LVGO
5425
HGO HDS
16330
BPSD
HVGO
9275
VDU
27570
BPSD
To NAP HDS
Gas + NAP
To LGO HDS.
Gas Oil
DES HVGO
8811
FCCU
10130
BPSD
Cracked Residue
7900
Slurry
1234
Cycle Oil
1365
DES LVGO
5295
Unsat LEs
1736
DES LGO
8101
Gas to Gas Treating
714
Naphtha
Splitter
15860
BPSD
DES KERO
4534
CAT Reformer Feed
8618
Light Naphtha
5970
Des
Naphtha
14588
DE C
4
Unit 19110
BPSD
Sat Light ends
2817
Lt Cracked NAP
3503
Heavy Cracked Nap
1695
Thermal
Cracker
12260 BPSD
Vacuum Residue
10665
Numbers represent BPCD unless stated otherwise
Hydrogen to HDS Units
(5.24 mm Sct/D)

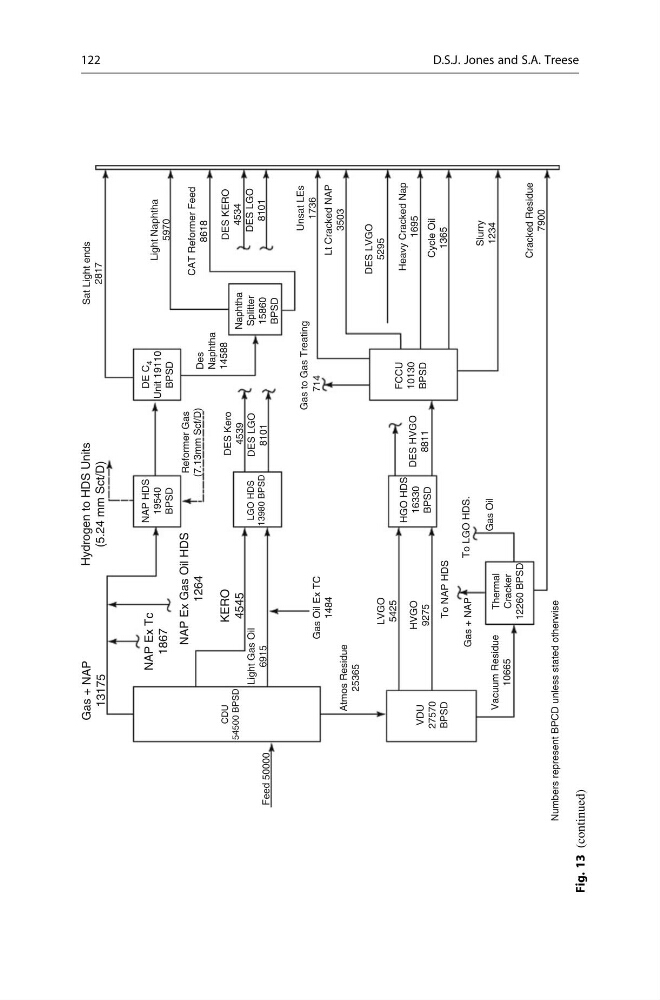

Fig. 13
(continued)
