172
6 Experimental Validation of the Methodology

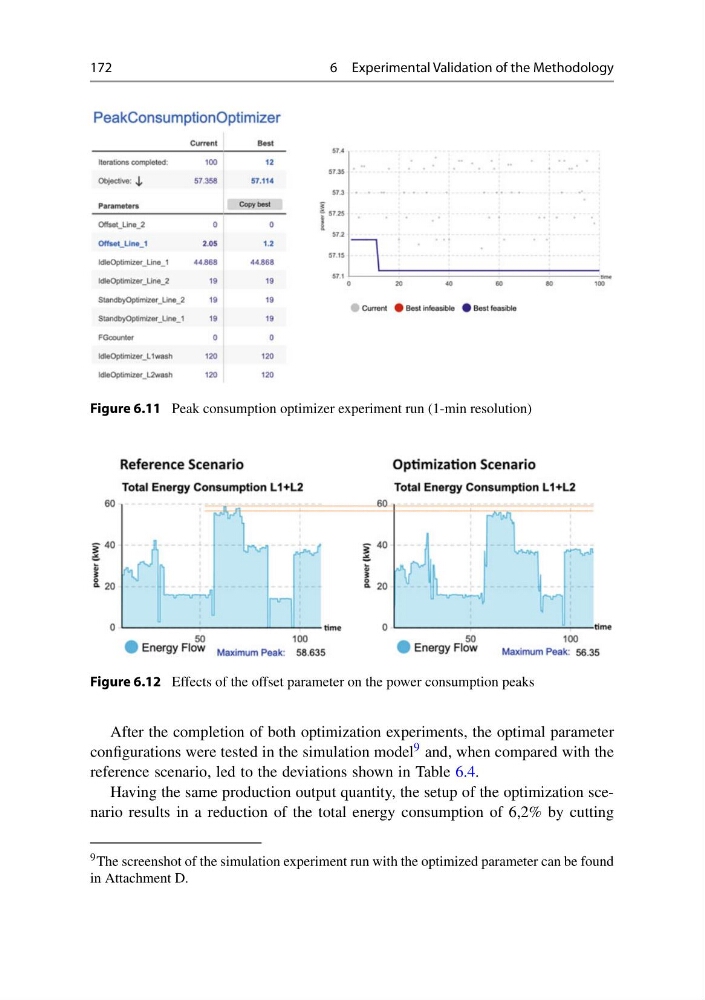

Figure 6.11 Peak consumption optimizer experiment run (1-min resolution)
Figure 6.12 Effects of the offset parameter on the power consumption peaks
After the completion of both optimization experiments, the optimal parameter
configurations were tested in the simulation model 9 and, when compared with the
reference scenario, led to the deviations shown in Table 6.4.
Having the same production output quantity, the setup of the optimization scenario results in a reduction of the total energy consumption of 6,2% by cutting
9 The screenshot of the simulation experiment run with the optimized parameter can be found
in Attachment D.
6 Experimental Validation of the Methodology
Figure 6.11 Peak consumption optimizer experiment run (1-min resolution)
Figure 6.12 Effects of the offset parameter on the power consumption peaks
After the completion of both optimization experiments, the optimal parameter
configurations were tested in the simulation model 9 and, when compared with the
reference scenario, led to the deviations shown in Table 6.4.
Having the same production output quantity, the setup of the optimization scenario results in a reduction of the total energy consumption of 6,2% by cutting
9 The screenshot of the simulation experiment run with the optimized parameter can be found
in Attachment D.
