5.6 Prototypical Implementation
143
Off
off variable
off fix
initial state
retention time
off delay
offset time

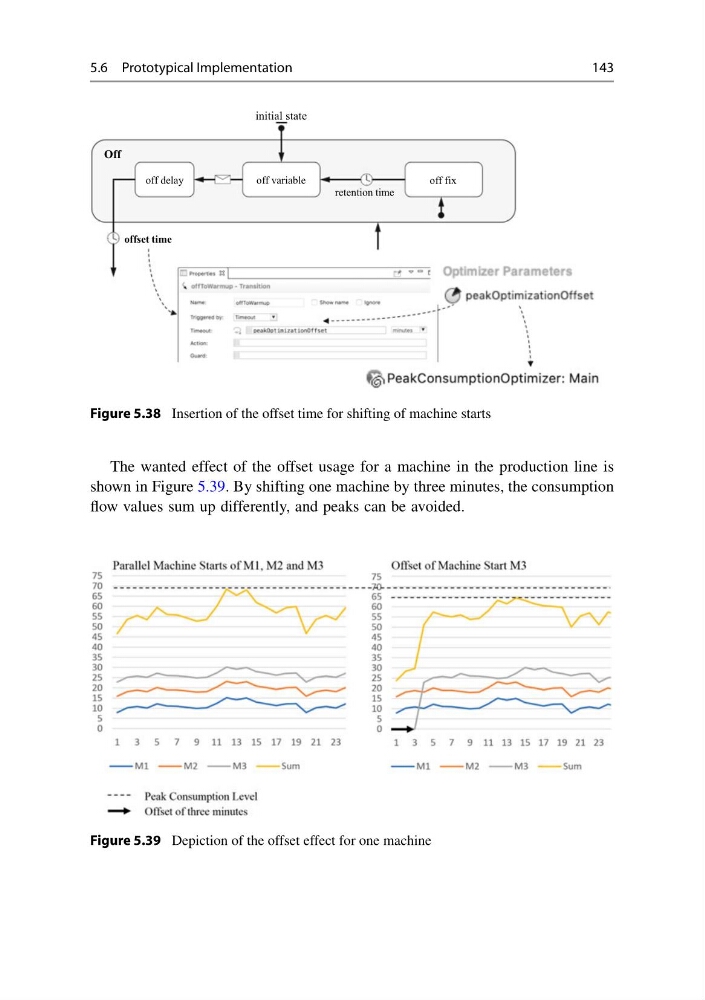

Figure 5.38 Insertion of the offset time for shifting of machine starts
The wanted effect of the offset usage for a machine in the production line is
shown in Figure 5.39. By shifting one machine by three minutes, the consumption
flow values sum up differently, and peaks can be avoided.
Figure 5.39 Depiction of the offset effect for one machine
