5.6 Prototypical Implementation
131
CNC1: Machine Logic Properties

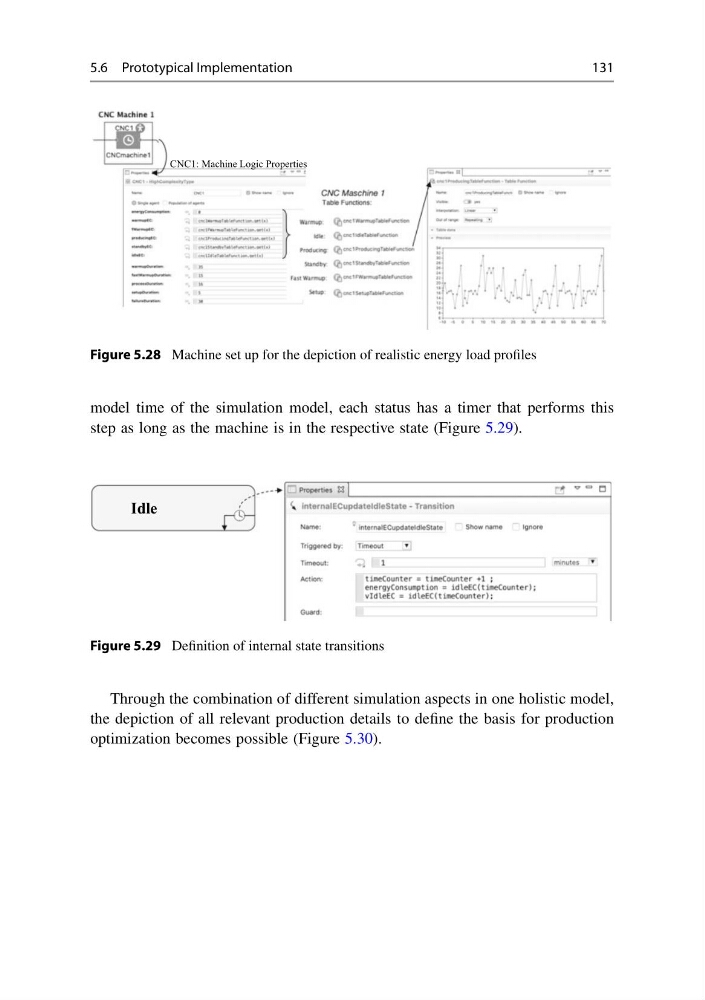

Figure 5.28 Machine set up for the depiction of realistic energy load profiles
model time of the simulation model, each status has a timer that performs this
step as long as the machine is in the respective state (Figure 5.29).
Idle
Figure 5.29 Definition of internal state transitions
Through the combination of different simulation aspects in one holistic model,
the depiction of all relevant production details to define the basis for production
optimization becomes possible (Figure 5.30).
