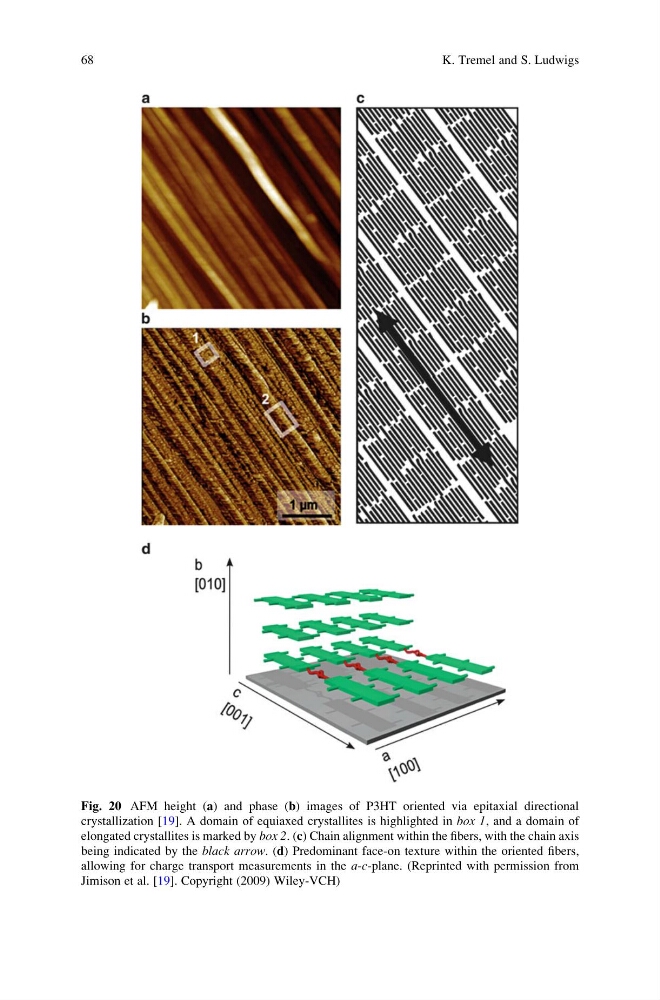

Fig. 20 AFM height (a) and phase (b) images of P3HT oriented via epitaxial directional
crystallization [19]. A domain of equiaxed crystallites is highlighted in box 1, and a domain of
elongated crystallites is marked by box 2. (c) Chain alignment within the fibers, with the chain axis
being indicated by the black arrow. (d) Predominant face-on texture within the oriented fibers,
allowing for charge transport measurements in the a-c-plane. (Reprinted with permission from
Jimison et al. [19]. Copyright (2009) Wiley-VCH)
68
K. Tremel and S. Ludwigs
