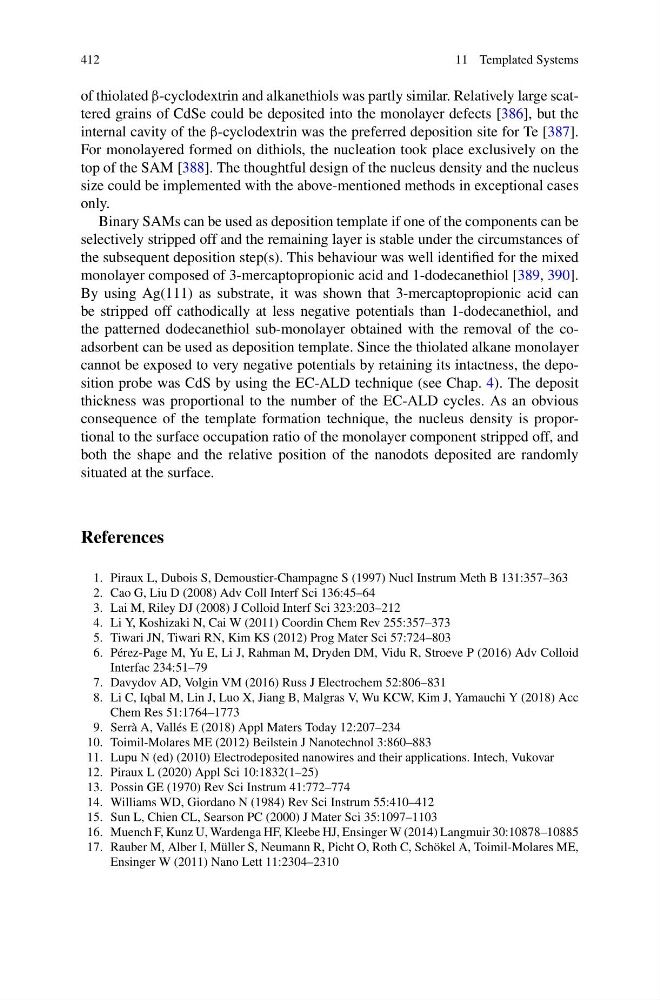

412
11 Templated Systems
of thiolated β-cyclodextrin and alkanethiols was partly similar. Relatively large scattered grains of CdSe could be deposited into the monolayer defects [386], but the
internal cavity of the β-cyclodextrin was the preferred deposition site for Te [387].
For monolayered formed on dithiols, the nucleation took place exclusively on the
top of the SAM [388]. The thoughtful design of the nucleus density and the nucleus
size could be implemented with the above-mentioned methods in exceptional cases
only.
Binary SAMs can be used as deposition template if one of the components can be
selectively stripped off and the remaining layer is stable under the circumstances of
the subsequent deposition step(s). This behaviour was well identified for the mixed
monolayer composed of 3-mercaptopropionic acid and 1-dodecanethiol [389, 390].
By using Ag(111) as substrate, it was shown that 3-mercaptopropionic acid can
be stripped off cathodically at less negative potentials than 1-dodecanethiol, and
the patterned dodecanethiol sub-monolayer obtained with the removal of the coadsorbent can be used as deposition template. Since the thiolated alkane monolayer
cannot be exposed to very negative potentials by retaining its intactness, the deposition probe was CdS by using the EC-ALD technique (see Chap. 4). The deposit
thickness was proportional to the number of the EC-ALD cycles. As an obvious
consequence of the template formation technique, the nucleus density is proportional to the surface occupation ratio of the monolayer component stripped off, and
both the shape and the relative position of the nanodots deposited are randomly
situated at the surface.
References
1. Piraux L, Dubois S, Demoustier-Champagne S (1997) Nucl Instrum Meth B 131:357–363
2. Cao G, Liu D (2008) Adv Coll Interf Sci 136:45–64
3. Lai M, Riley DJ (2008) J Colloid Interf Sci 323:203–212
4. Li Y, Koshizaki N, Cai W (2011) Coordin Chem Rev 255:357–373
5. Tiwari JN, Tiwari RN, Kim KS (2012) Prog Mater Sci 57:724–803
6. Pérez-Page M, Yu E, Li J, Rahman M, Dryden DM, Vidu R, Stroeve P (2016) Adv Colloid
Interfac 234:51–79
7. Davydov AD, Volgin VM (2016) Russ J Electrochem 52:806–831
8. Li C, Iqbal M, Lin J, Luo X, Jiang B, Malgras V, Wu KCW, Kim J, Yamauchi Y (2018) Acc
Chem Res 51:1764–1773
9. Serrà A, Vallés E (2018) Appl Maters Today 12:207–234
10. Toimil-Molares ME (2012) Beilstein J Nanotechnol 3:860–883
11. Lupu N (ed) (2010) Electrodeposited nanowires and their applications. Intech, Vukovar
12. Piraux L (2020) Appl Sci 10:1832(1–25)
13. Possin GE (1970) Rev Sci Instrum 41:772–774
14. Williams WD, Giordano N (1984) Rev Sci Instrum 55:410–412
15. Sun L, Chien CL, Searson PC (2000) J Mater Sci 35:1097–1103
16. Muench F, Kunz U, Wardenga HF, Kleebe HJ, Ensinger W (2014) Langmuir 30:10878–10885
17. Rauber M, Alber I, Müller S, Neumann R, Picht O, Roth C, Schökel A, Toimil-Molares ME,
Ensinger W (2011) Nano Lett 11:2304–2310
