The bifurcation can be avoided should α 23 be greater than π/2 and
.
This only becomes possible when the horizontal bars are replaced by
inclined bars. Figure 6.25 shows such an example in which
and α 12 = α 45 = 3π/2, α 23 = α 56 = 2π/3 and α 34 = α 61 = π/2. As expected no bifurcation is detected in the model. The design retains two- fold symmetry.
Details of the bifurcation analysis and the design involving inclined bars
can be found in Chen and You (2009).

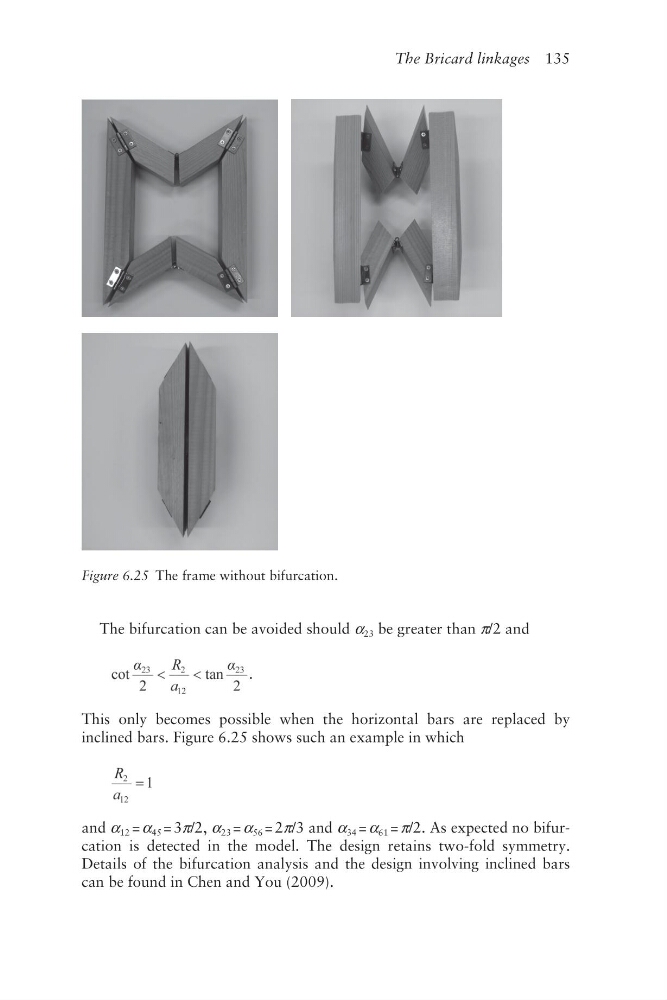

Figure 6.25 The frame without bifurcation.
