Appendix A5: 232 Th-Fueled ADS Core
A5.1 Core Configurations
See (Figs. A5.1, A5.2, A5.3, A5.4, A5.5, A5.6, A5.7 and A5.8, Table A5.1).
10 11 12 13 14 15 16 17 18 19 20
O
TP
P
Q
R
T
TP TP TP TP TP
U
TP TP TP TP TP
V
TP TP TP TP TP
W
TP TP TP TP TP
X
TP TP TP TP TP
Y
Z
Optical fiber
Tritium target
Deuteron beams
Thorium fuel and polyethylene (Th-PE)
(Th-Gr; Th-Be; Th-HEU-PE; NU-PE)
Polyethylene
3
He detector
In wire position
3 He #1
3 He #2
3 He #3

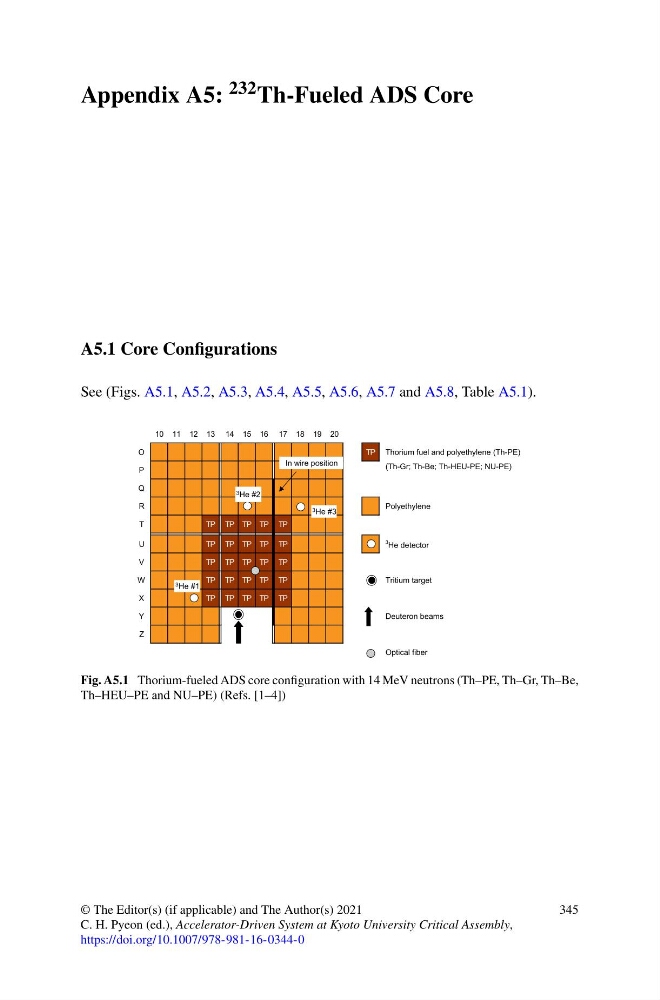

Fig. A5.1 Thorium-fueled ADS core configuration with 14 MeV neutrons (Th–PE, Th–Gr, Th–Be,
Th–HEU–PE and NU–PE) (Refs. [1–4])
