Appendix A2: 235 U-Fueled and Pb–Bi–Zoned ADS Core
50.16 mm
Pb-Bi plate
50.0 mm
3.27 mm
2nd layer : 40 μm
1st layer : 40 μm
3.426 mm
Pb-Bi: 50.00 mm
1st layer: 50.08 mm
2nd layer: 50.16 mm
50.16 mm

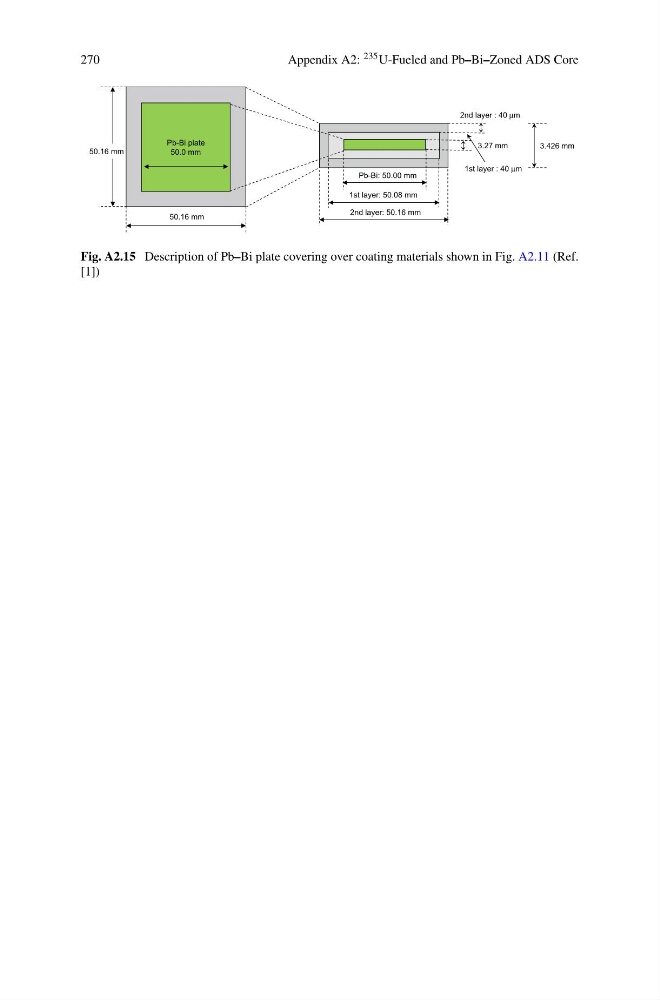

Fig. A2.15 Description of Pb–Bi plate covering over coating materials shown in Fig. A2.11 (Ref.
[1])
