496
Y. V. Naidich et al.

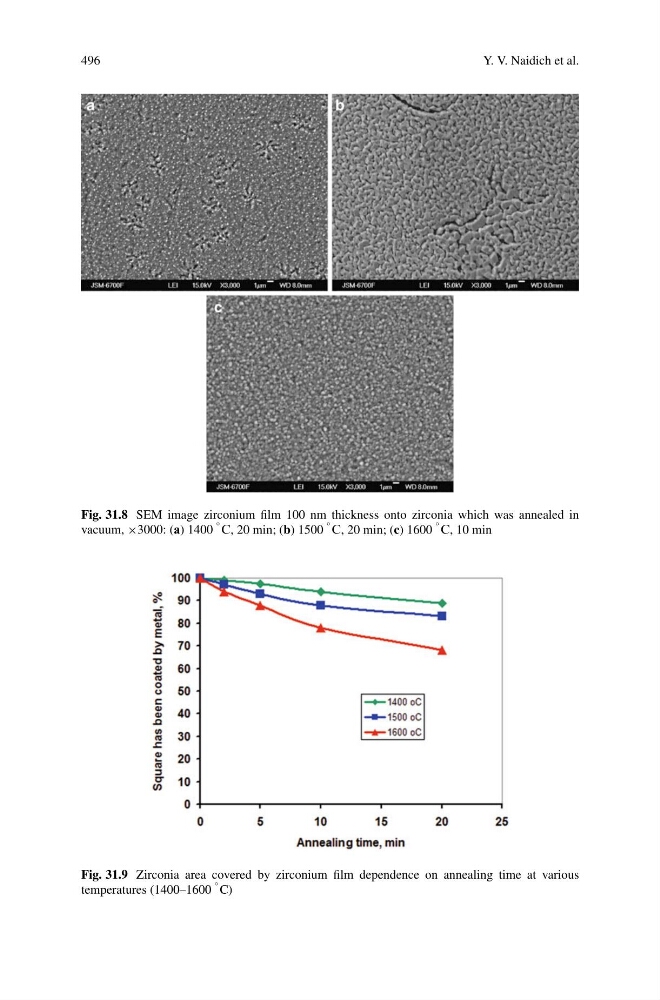

Fig. 31.8 SEM image zirconium film 100 nm thickness onto zirconia which was annealed in
vacuum, ×3000: (Ã) 1400
◦ ´, 20 min; (b) 1500
◦ ´, 20 min; (c) 1600
◦ ´, 10 min
Fig. 31.9 Zirconia area covered by zirconium film dependence on annealing time at various
temperatures (1400–1600
◦ C)
