8.3 Domain-Selective Coupling on Solvent-Treated Polymer Films
155

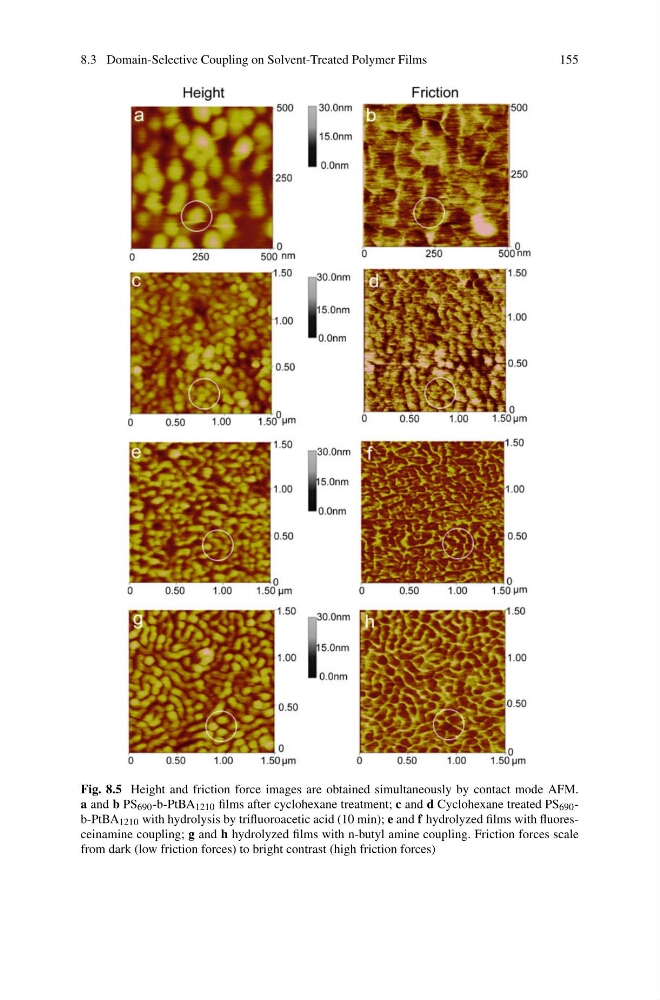

Fig. 8.5 Height and friction force images are obtained simultaneously by contact mode AFM.
a and b PS 690 -b-PtBA 1210 films after cyclohexane treatment; c and d Cyclohexane treated PS 690 -
b-PtBA 1210 with hydrolysis by trifluoroacetic acid (10 min); e and f hydrolyzed films with fluoresceinamine coupling; g and h hydrolyzed films with n-butyl amine coupling. Friction forces scale
from dark (low friction forces) to bright contrast (high friction forces)
