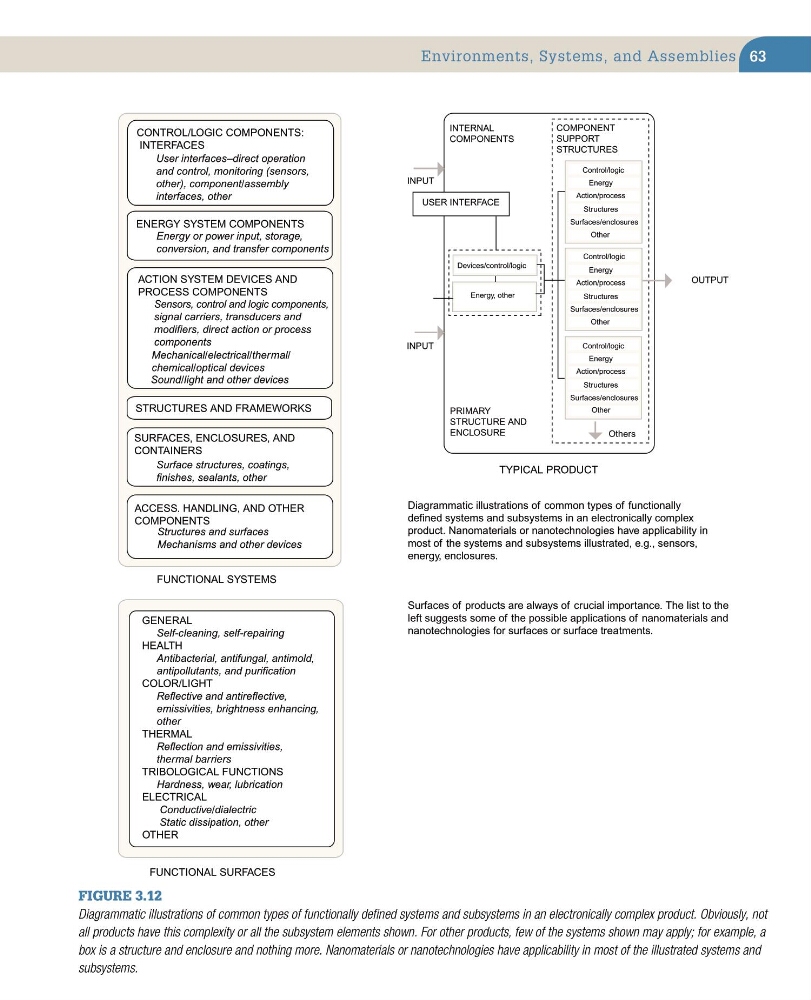

Figure 3.12
Diagrammatic illustrations of common types of functionally defined systems and subsystems in an electronically complex product. Obviously, not
all products have this complexity or all the subsystem elements shown. For other products, few of the systems shown may apply; for example, a
box is a structure and enclosure and nothing more. Nanomaterials or nanotechnologies have applicability in most of the illustrated systems and
subsystems.
