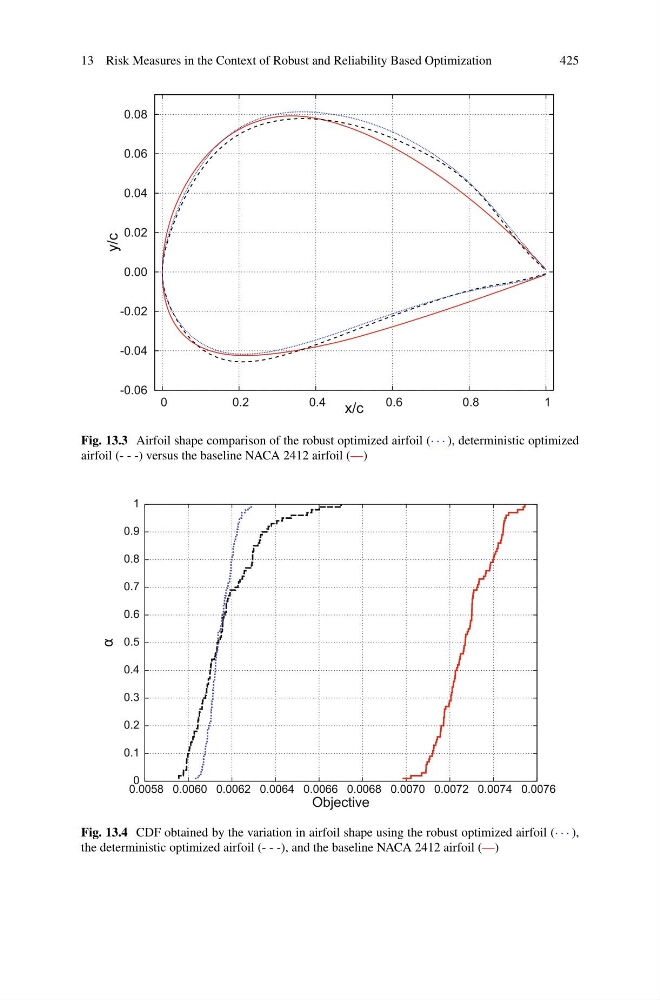

Fig. 13.3 Airfoil shape comparison of the robust optimized airfoil (· · · ), deterministic optimized
airfoil (- - -) versus the baseline NACA 2412 airfoil (—)
Fig. 13.4 CDF obtained by the variation in airfoil shape using the robust optimized airfoil (· · · ),
the deterministic optimized airfoil (- - -), and the baseline NACA 2412 airfoil (—)
