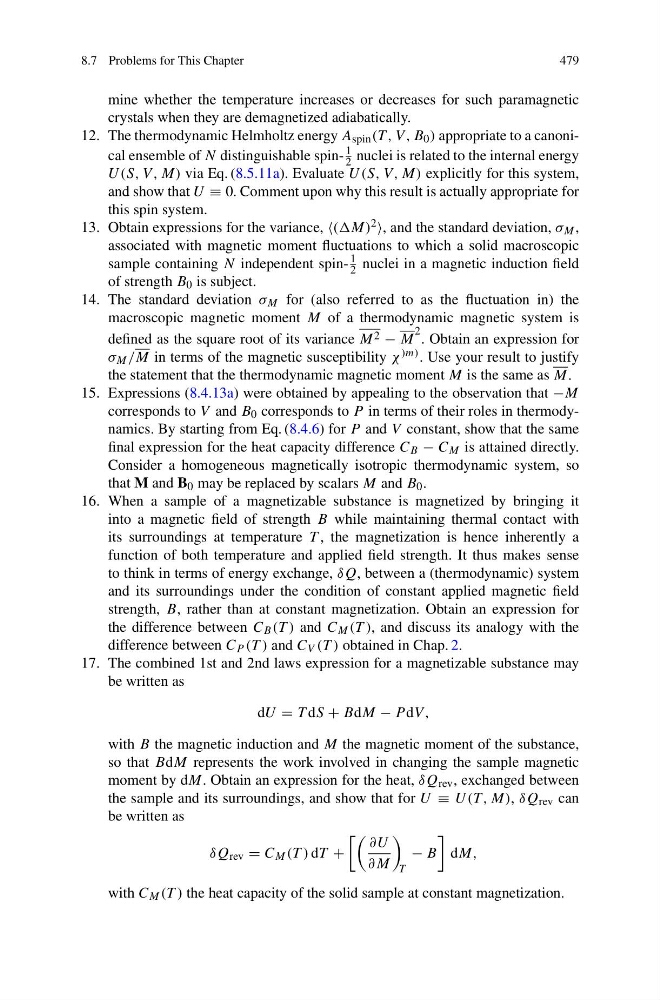

8.7 Problems for This Chapter
479
mine whether the temperature increases or decreases for such paramagnetic
crystals when they are demagnetized adiabatically.
12. The thermodynamic Helmholtz energy A spin (T , V , B 0 ) appropriate to a canonical ensemble of N distinguishable spin1
2 nuclei is related to the internal energy
U(S, V , M) via Eq. (8.5.11a). Evaluate U(S, V , M) explicitly for this system,
and show that U ≡ 0. Comment upon why this result is actually appropriate for
this spin system.
13. Obtain expressions for the variance, ((M) 2 , and the standard deviation, σ M ,
associated with magnetic moment fluctuations to which a solid macroscopic
sample containing N independent spin1
2 nuclei in a magnetic induction field
of strength B 0 is subject.
14. The standard deviation σ M for (also referred to as the fluctuation in) the
macroscopic magnetic moment M of a thermodynamic magnetic system is
defined as the square root of its variance M 2 − M
2 . Obtain an expression for
σ M /M in terms of the magnetic susceptibility χ )m) . Use your result to justify
the statement that the thermodynamic magnetic moment M is the same as M.
15. Expressions (8.4.13a) were obtained by appealing to the observation that −M
corresponds to V and B 0 corresponds to P in terms of their roles in thermodynamics. By starting from Eq. (8.4.6) for P and V constant, show that the same
final expression for the heat capacity difference C B − C M is attained directly.
Consider a homogeneous magnetically isotropic thermodynamic system, so
that M and B 0 may be replaced by scalars M and B 0 .
16. When a sample of a magnetizable substance is magnetized by bringing it
into a magnetic field of strength B while maintaining thermal contact with
its surroundings at temperature T , the magnetization is hence inherently a
function of both temperature and applied field strength. It thus makes sense
to think in terms of energy exchange, δQ, between a (thermodynamic) system
and its surroundings under the condition of constant applied magnetic field
strength, B, rather than at constant magnetization. Obtain an expression for
the difference between C B (T ) and C M (T ), and discuss its analogy with the
difference between C P (T ) and C V (T ) obtained in Chap. 2.
17. The combined 1st and 2nd laws expression for a magnetizable substance may
be written as
dU = T dS + BdM − P dV ,
with B the magnetic induction and M the magnetic moment of the substance,
so that BdM represents the work involved in changing the sample magnetic
moment by dM. Obtain an expression for the heat, δQ rev , exchanged between
the sample and its surroundings, and show that for U ≡ U(T , M), δQ rev can
be written as
δQ rev = C M (T ) dT +
∂U
∂M
T
− B
dM,
with C M (T ) the heat capacity of the solid sample at constant magnetization.
