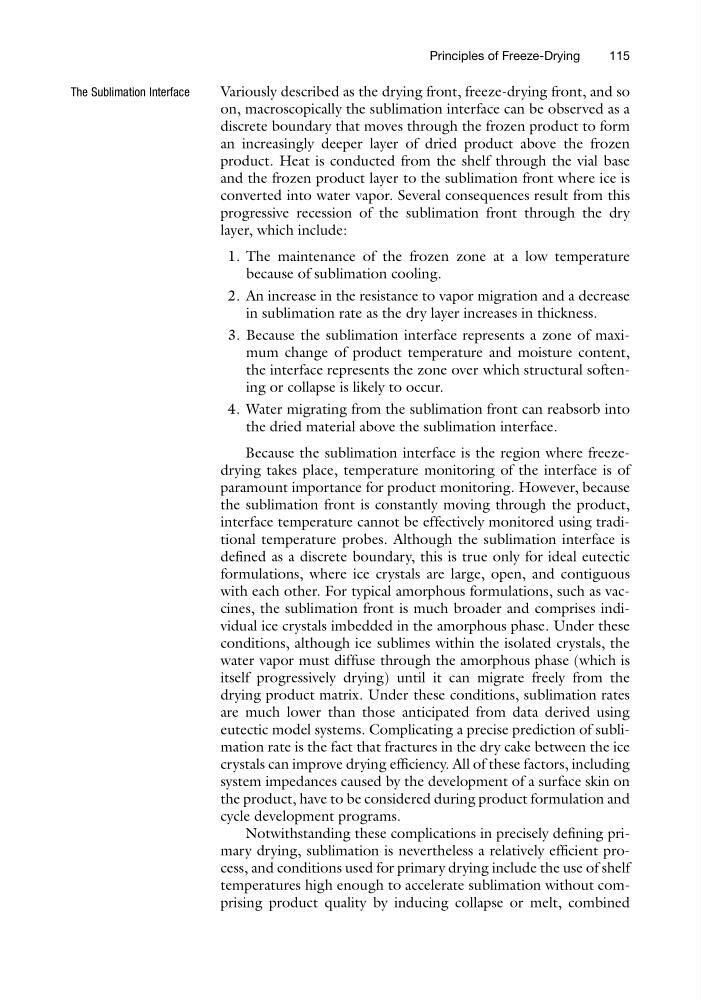

The Sublimation Interface
Variously described as the drying front, freeze-drying front, and so
on, macroscopically the sublimation interface can be observed as a
discrete boundary that moves through the frozen product to form
an increasingly deeper layer of dried product above the frozen
product. Heat is conducted from the shelf through the vial base
and the frozen product layer to the sublimation front where ice is
converted into water vapor. Several consequences result from this
progressive recession of the sublimation front through the dry
layer, which include:
1. The maintenance of the frozen zone at a low temperature
because of sublimation cooling.
2. An increase in the resistance to vapor migration and a decrease
in sublimation rate as the dry layer increases in thickness.
3. Because the sublimation interface represents a zone of maximum change of product temperature and moisture content,
the interface represents the zone over which structural softening or collapse is likely to occur.
4. Water migrating from the sublimation front can reabsorb into
the dried material above the sublimation interface.
Because the sublimation interface is the region where freezedrying takes place, temperature monitoring of the interface is of
paramount importance for product monitoring. However, because
the sublimation front is constantly moving through the product,
interface temperature cannot be effectively monitored using traditional temperature probes. Although the sublimation interface is
defined as a discrete boundary, this is true only for ideal eutectic
formulations, where ice crystals are large, open, and contiguous
with each other. For typical amorphous formulations, such as vaccines, the sublimation front is much broader and comprises individual ice crystals imbedded in the amorphous phase. Under these
conditions, although ice sublimes within the isolated crystals, the
water vapor must diffuse through the amorphous phase (which is
itself progressively drying) until it can migrate freely from the
drying product matrix. Under these conditions, sublimation rates
are much lower than those anticipated from data derived using
eutectic model systems. Complicating a precise prediction of sublimation rate is the fact that fractures in the dry cake between the ice
crystals can improve drying efficiency. All of these factors, including
system impedances caused by the development of a surface skin on
the product, have to be considered during product formulation and
cycle development programs.
Notwithstanding these complications in precisely defining primary drying, sublimation is nevertheless a relatively efficient process, and conditions used for primary drying include the use of shelf
temperatures high enough to accelerate sublimation without comprising product quality by inducing collapse or melt, combined
Principles of Freeze-Drying
115
