Many types of data are managed in the database, including radar return data, target
feature data, AIS and ADS-B data, weather/hydrological data and infrared data, etc. In
order to store these data more effectively, a special data and computing center server is
set up, and a schematic diagram of the stored data types is shown in Fig. 3.
Detection equipment and
data acquisition module
Data management and
processing module
Integrated display module
Radar detection equipment
Satellite ground station and
photoelectric equipment
AIS, ADS-B
High-speed data acquisition
and storage equipment
Radar database
Auxiliary sensor database
Signal processing and data
processing platform
Radar data display
Auxiliary sensor data display
Comprehensive situation data
display

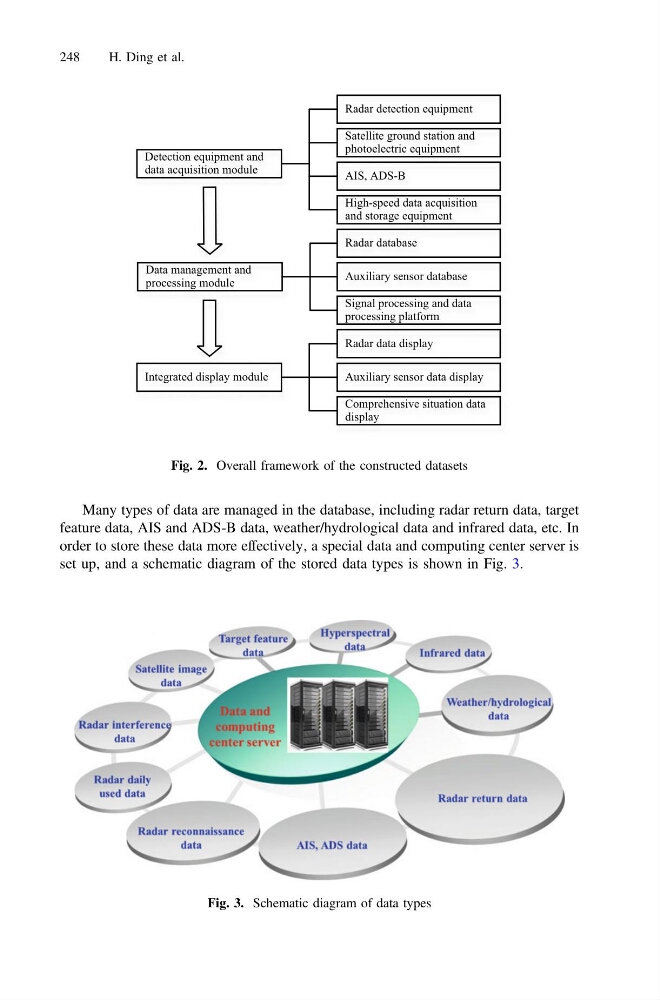

Fig. 2. Overall framework of the constructed datasets
Fig. 3. Schematic diagram of data types
