Study on Dali-Baoshan Section of Anning-Baoshan Oil Product Pipeline
85

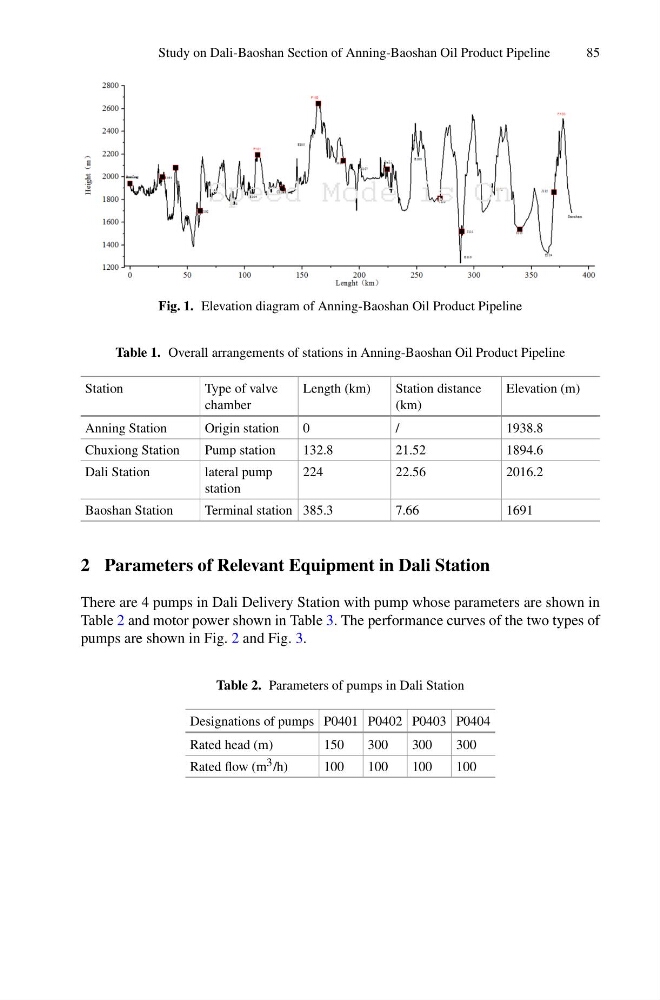

Fig. 1. Elevation diagram of Anning-Baoshan Oil Product Pipeline
Table 1. Overall arrangements of stations in Anning-Baoshan Oil Product Pipeline
Station
Type of valve
chamber
Length (km)
Station distance
(km)
Elevation (m)
Anning Station
Origin station
0
/
1938.8
Chuxiong Station
Pump station
132.8
21.52
1894.6
Dali Station
lateral pump
station
224
22.56
2016.2
Baoshan Station
Terminal station 385.3
7.66
1691
2 Parameters of Relevant Equipment in Dali Station
There are 4 pumps in Dali Delivery Station with pump whose parameters are shown in
Table 2 and motor power shown in Table 3. The performance curves of the two types of
pumps are shown in Fig. 2 and Fig. 3.
Table 2. Parameters of pumps in Dali Station
Designations of pumps P0401 P0402 P0403 P0404
Rated head (m)
150
300
300
300
Rated flow (m 3 /h)
100
100
100
100
