534
G. Kotalczyk and F. E. Kruis

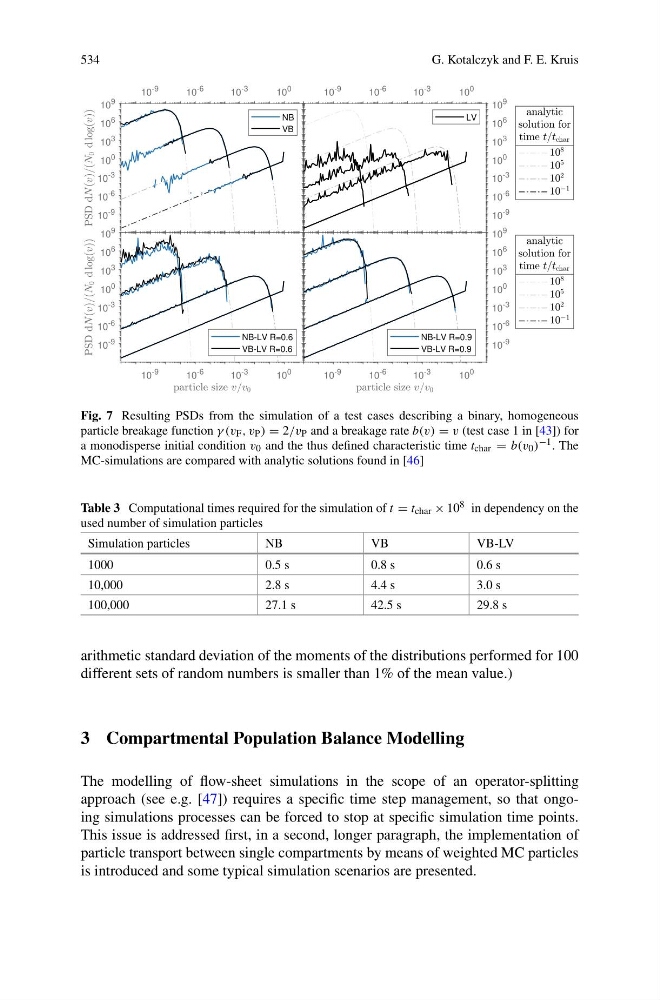

Fig. 7 Resulting PSDs from the simulation of a test cases describing a binary, homogeneous
particle breakage function γ (v F , v P ) = 2/v P and a breakage rate b(v) = v (test case 1 in [43]) for
a monodisperse initial condition v 0 and the thus defined characteristic time t char = b(v 0 ) −1 . The
MC-simulations are compared with analytic solutions found in [46]
Table 3 Computational times required for the simulation of t = t char × 10 8 in dependency on the
used number of simulation particles
Simulation particles
NB
VB
VB-LV
1000
0.5 s
0.8 s
0.6 s
10,000
2.8 s
4.4 s
3.0 s
100,000
27.1 s
42.5 s
29.8 s
arithmetic standard deviation of the moments of the distributions performed for 100
different sets of random numbers is smaller than 1% of the mean value.)
3 Compartmental Population Balance Modelling
The modelling of flow-sheet simulations in the scope of an operator-splitting
approach (see e.g. [47]) requires a specific time step management, so that ongoing simulations processes can be forced to stop at specific simulation time points.
This issue is addressed first, in a second, longer paragraph, the implementation of
particle transport between single compartments by means of weighted MC particles
is introduced and some typical simulation scenarios are presented.
