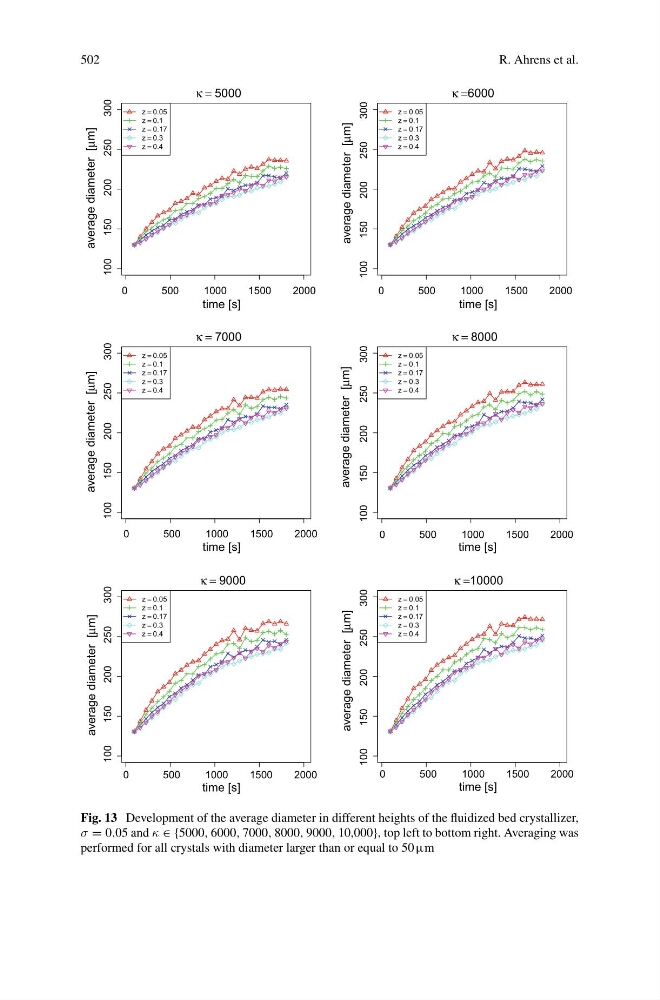

Fig. 13 Development of the average diameter in different heights of the fluidized bed crystallizer,
σ = 0.05 and κ ∈ {5000, 6000, 7000, 8000, 9000, 10,000}, top left to bottom right. Averaging was
performed for all crystals with diameter larger than or equal to 50 μm
