7.2 A Trojan-Resistant System …
659

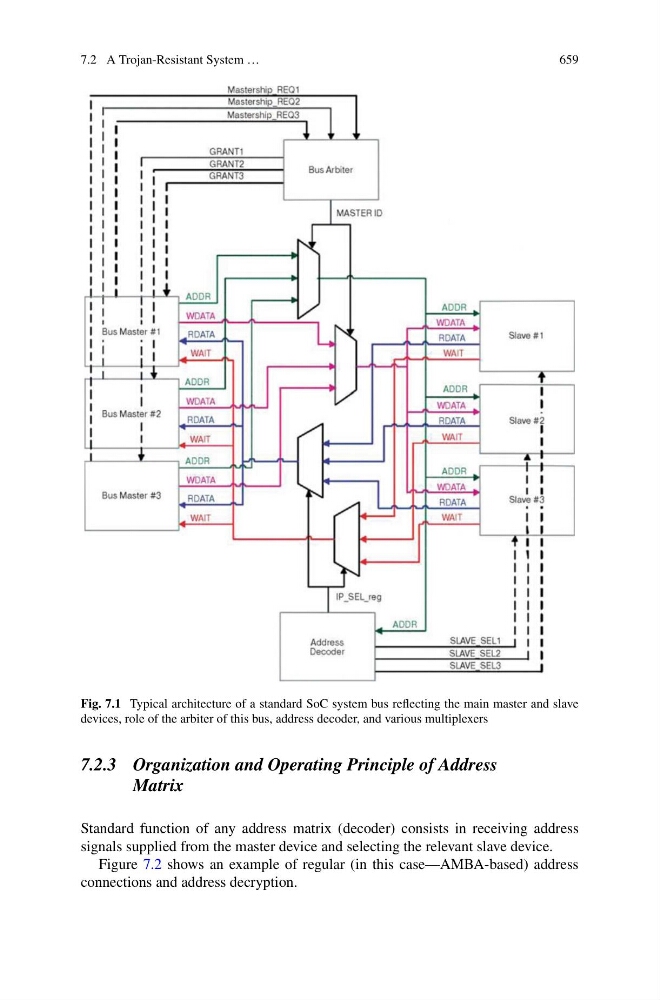

Fig. 7.1 Typical architecture of a standard SoC system bus reflecting the main master and slave
devices, role of the arbiter of this bus, address decoder, and various multiplexers
7.2.3 Organization and Operating Principle of Address
Matrix
Standard function of any address matrix (decoder) consists in receiving address
signals supplied from the master device and selecting the relevant slave device.
Figure 7.2 shows an example of regular (in this case—AMBA-based) address
connections and address decryption.
