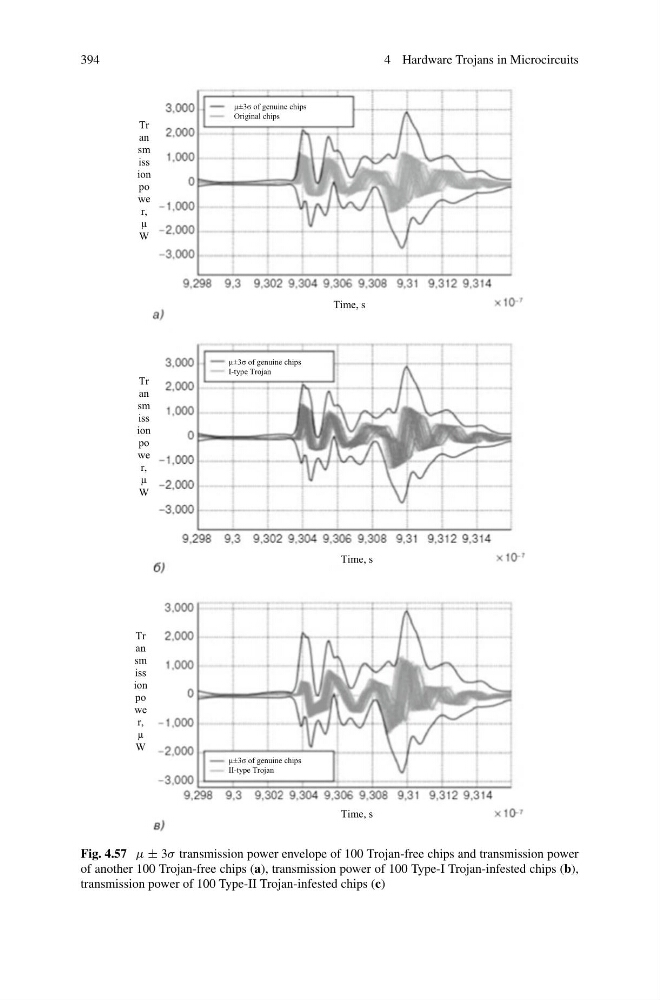

Fig. 4.57 μ ± 3σ transmission power envelope of 100 Trojan-free chips and transmission power
of another 100 Trojan-free chips (a), transmission power of 100 Type-I Trojan-infested chips (b),
transmission power of 100 Type-II Trojan-infested chips (c)
