9 Integrated Design Process
Determining the Architecture
(Chapter 7)
Specifying the Components and Dimensioning the Microfluidic Network
(Chapter 4)
Determining the Discrete Model
(Section 8.1)
Verifying the Microfluidic Network
(Section 8.3)
Generating and Validating Droplet Sequences
(Section 8.2 and Chapter 3)
Drawing the Physical Design
(Chapter 5)
No droplet sequence exists
Input: Set of Experiments

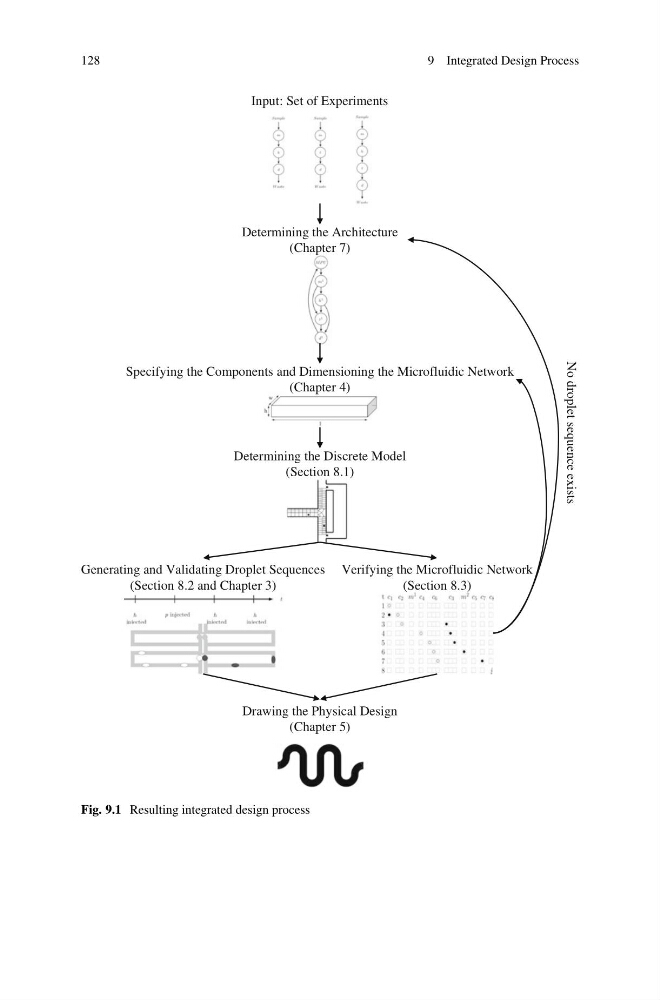

Fig. 9.1 Resulting integrated design process
