66
7 The Crystalline Solid—Dislocations

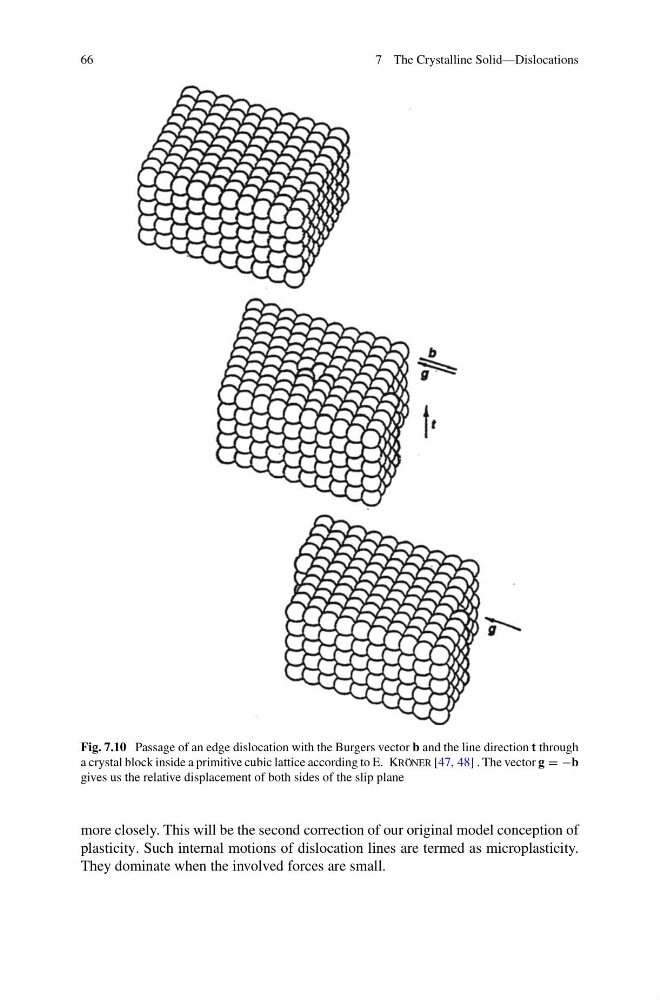

Fig. 7.10 Passage of an edge dislocation with the Burgers vector b and the line direction t through
a crystal block inside a primitive cubic lattice according to E. Kröner [47, 48] . The vector g = −b
gives us the relative displacement of both sides of the slip plane
more closely. This will be the second correction of our original model conception of
plasticity. Such internal motions of dislocation lines are termed as microplasticity.
They dominate when the involved forces are small.
