116
A. Bhattacharyya et al.
thin E 32 . Since Fig. 9b illustrates, the mentioned uppermost functional temperature
meant for GaAs/AlGaAs is 160 K meant for a 1.9-THz-Quantum Cascade Laser
along with 150 K for a 3.8-THz-Quantum Cascade Laser, while GaN-supported
Quantum Cascade Lasers may attempt at T = 300 K [34–36]. A diagrammatic for
the generally GaN-supported Terahertz-Quantum Cascade Laser device is exposed in
Fig. 9c. AlGaN/GaN quantum wells are moreover suggested meant for assimilation
of Terahertz radiation [37]. Diminution in Al mole division affects the width of quantum well to rise, and hence, inter-subband conversions in these quantum wells are
adaptable to be among 1.0–10 µm [38]. In favor of assimilation in the Terahertz frequency variety, plasma-assisted molecular beam Eepitaxy by adjustable assimilation
commencing 53 toward 160 µm, regarding doping stage and mathematical deviations, has been described [39]. During 2016, a research group of Boston University
highlighted peak value of photo-currents near 10 THz for Terahertz-inter-subband
photodetectors that are expanded supported on GaN/AlGaN quantum wells developed over a freestanding semi-polar GaN body [40]. Spectrum of photocurrent with
CB array of semi-polar GaN/AlGaN quantum well infrared photodetector extended
via the group of researchers, as exposed in Fig. 10.

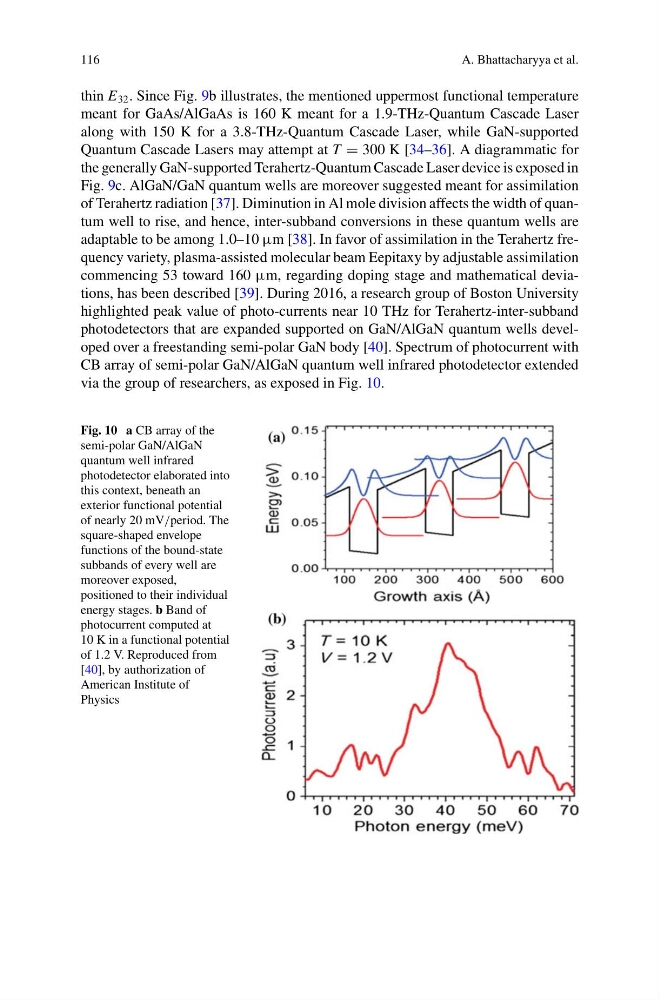

Fig. 10 a CB array of the
semi-polar GaN/AlGaN
quantum well infrared
photodetector elaborated into
this context, beneath an
exterior functional potential
of nearly 20 mV/period. The
square-shaped envelope
functions of the bound-state
subbands of every well are
moreover exposed,
positioned to their individual
energy stages. b Band of
photocurrent computed at
10 K in a functional potential
of 1.2 V. Reproduced from
[40], by authorization of
American Institute of
Physics
