378
A. Shishido et al.

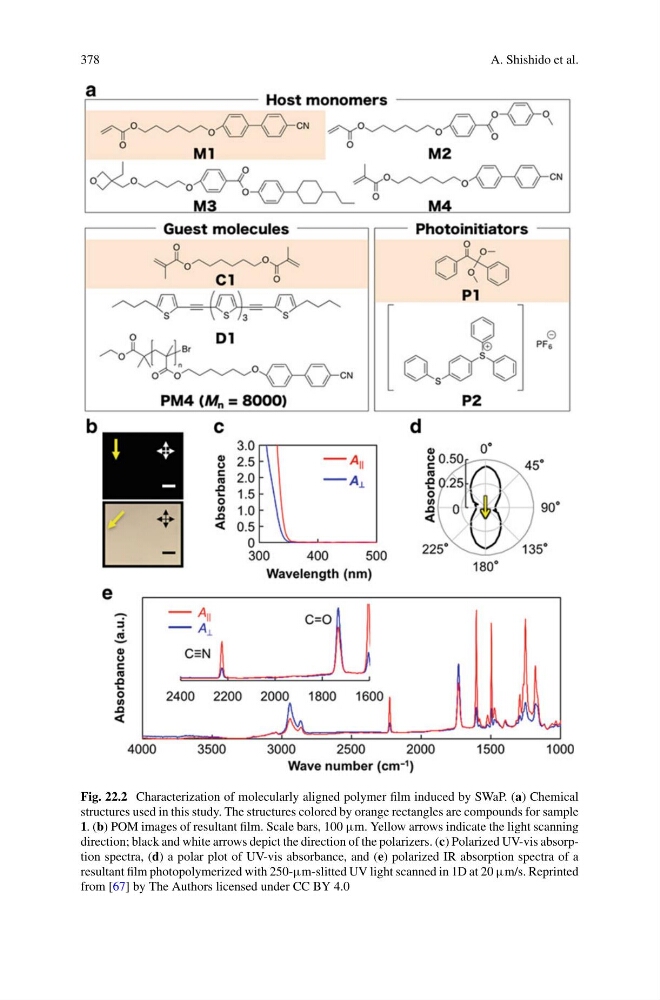

Fig. 22.2 Characterization of molecularly aligned polymer film induced by SWaP. (a) Chemical
structures used in this study. The structures colored by orange rectangles are compounds for sample
1. (b) POM images of resultant film. Scale bars, 100 μm. Yellow arrows indicate the light scanning
direction; black and white arrows depict the direction of the polarizers. (c) Polarized UV-vis absorption spectra, (d) a polar plot of UV-vis absorbance, and (e) polarized IR absorption spectra of a
resultant film photopolymerized with 250-μm-slitted UV light scanned in 1D at 20 μm/s. Reprinted
from [67] by The Authors licensed under CC BY 4.0
