4.1 SEM Images of the Samples
83

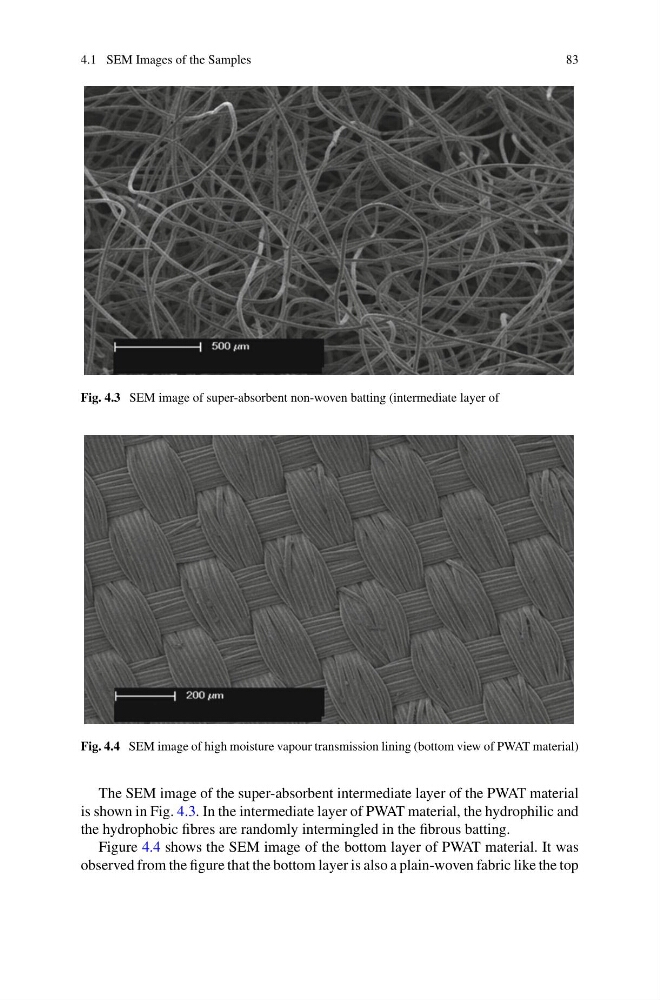

Fig. 4.3 SEM image of super-absorbent non-woven batting (intermediate layer of
Fig. 4.4 SEM image of high moisture vapour transmission lining (bottom view of PWAT material)
The SEM image of the super-absorbent intermediate layer of the PWAT material
is shown in Fig. 4.3. In the intermediate layer of PWAT material, the hydrophilic and
the hydrophobic fibres are randomly intermingled in the fibrous batting.
Figure 4.4 shows the SEM image of the bottom layer of PWAT material. It was
observed from the figure that the bottom layer is also a plain-woven fabric like the top
