common sources, as shown in Fig. 9.27. The gas used for turbogenerator
driving Sparrow series is separated from the gas used for hydraulic power
boosting of seeker antenna, as shown in Fig. 9.26.
3. Cold air source. The cooling turbogenerator used by Sam 3 (SA-3) and Sam
6 (SA-6) is co-source with the cold air steering gear, as shown in Fig. 9.25,
while the separate cold air source is very rare in air defense missiles.
4. Electric source. The French rattlesnake is a common source. The battery on
the missile provides unified power supply to the electrical equipment of the
whole missile, including the electric steering gear, as shown in Fig. 9.23.
The American Patriot, on the other hand, operates separately from the
electric variable displacement pump by dedicated batteries, as shown in
Fig. 9.28.
Fuel tank
Decompressor
Hydraulic steering gear
Gas motor variable
displacement pump
Differential piston tank
Liquid gas generator
Flow regulating valve
Liquid Unit Agent Tank
Pressure feedback

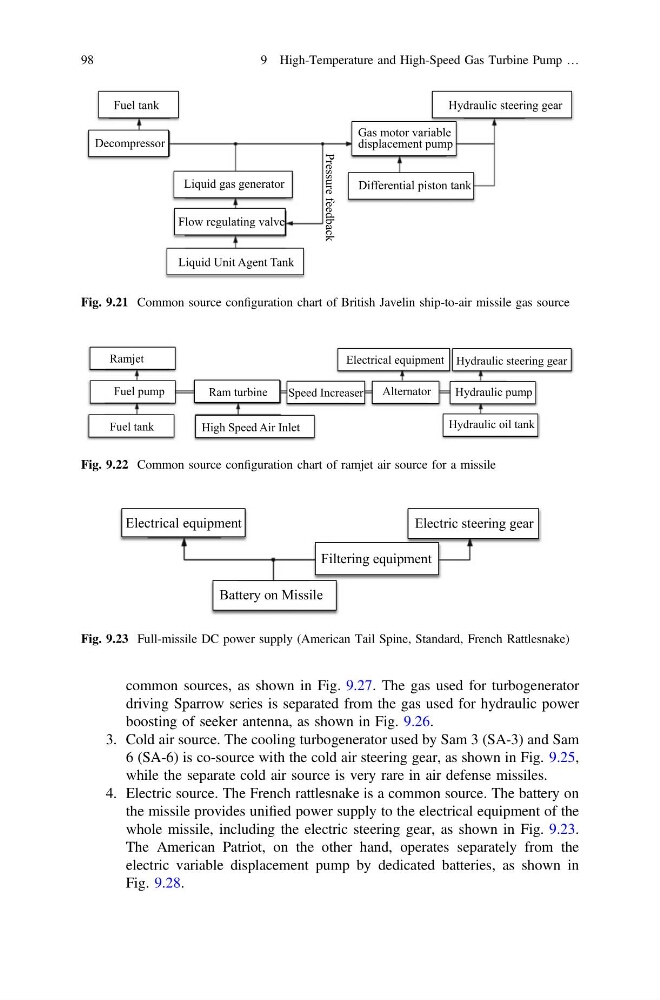

Fig. 9.21 Common source configuration chart of British Javelin ship-to-air missile gas source
Ramjet
Fuel pump
Fuel tank
Ram turbine
High Speed Air Inlet
Speed Increaser
Electrical equipment Hydraulic steering gear
Alternator
Hydraulic pump
Hydraulic oil tank
Fig. 9.22 Common source configuration chart of ramjet air source for a missile
Electrical equipment
Electric steering gear
Filtering equipment
Battery on Missile
Fig. 9.23 Full-missile DC power supply (American Tail Spine, Standard, French Rattlesnake)
