Tested tubing
Fork-type
measuring device
Centerline connected by
multiple points
Tangent point to
the bent section
Measured point
End point
End point

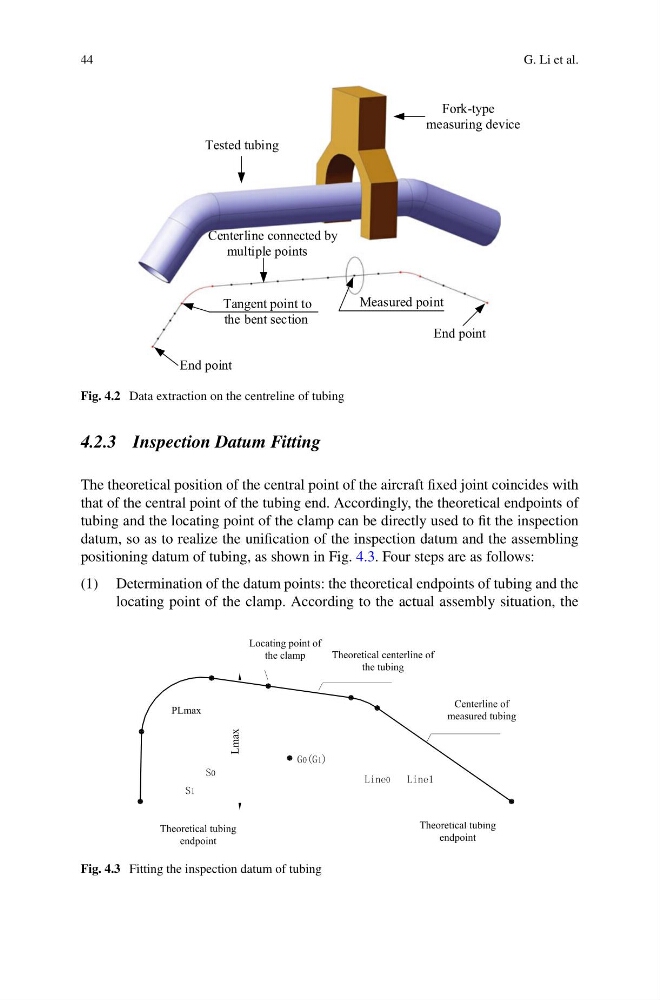

Fig. 4.2 Data extraction on the centreline of tubing
4.2.3 Inspection Datum Fitting
The theoretical position of the central point of the aircraft fixed joint coincides with
that of the central point of the tubing end. Accordingly, the theoretical endpoints of
tubing and the locating point of the clamp can be directly used to fit the inspection
datum, so as to realize the unification of the inspection datum and the assembling
positioning datum of tubing, as shown in Fig. 4.3. Four steps are as follows:
(1) Determination of the datum points: the theoretical endpoints of tubing and the
locating point of the clamp. According to the actual assembly situation, the
Fig. 4.3 Fitting the inspection datum of tubing
