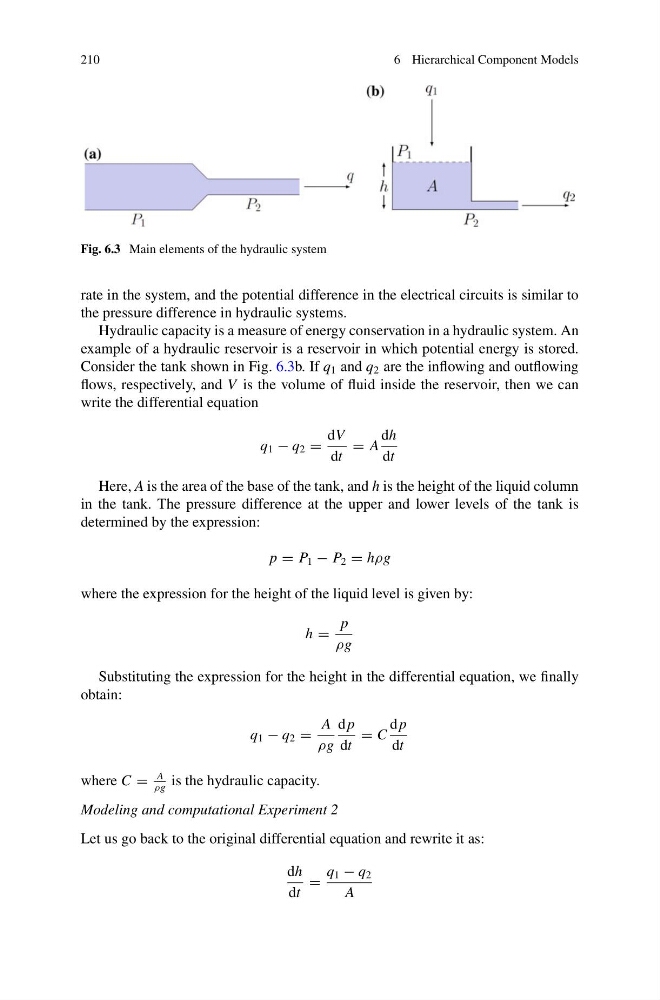

Fig. 6.3 Main elements of the hydraulic system
rate in the system, and the potential difference in the electrical circuits is similar to
the pressure difference in hydraulic systems.
Hydraulic capacity is a measure of energy conservation in a hydraulic system. An
example of a hydraulic reservoir is a reservoir in which potential energy is stored.
Consider the tank shown in Fig. 6.3b. If q 1 and q 2 are the inflowing and outflowing
flows, respectively, and V is the volume of fluid inside the reservoir, then we can
write the differential equation
q 1 − q 2 =
dV
dt
= A
dh
dt
Here, A is the area of the base of the tank, and h is the height of the liquid column
in the tank. The pressure difference at the upper and lower levels of the tank is
determined by the expression:
p = P 1 − P 2 = hρg
where the expression for the height of the liquid level is given by:
h =
p
ρg
Substituting the expression for the height in the differential equation, we finally
obtain:
q 1 − q 2 =
A
ρg
d p
dt
= C
d p
dt
where C =
A
ρg
is the hydraulic capacity.
Modeling and computational Experiment 2
Let us go back to the original differential equation and rewrite it as:
dh
dt
=
q 1 − q 2
A
