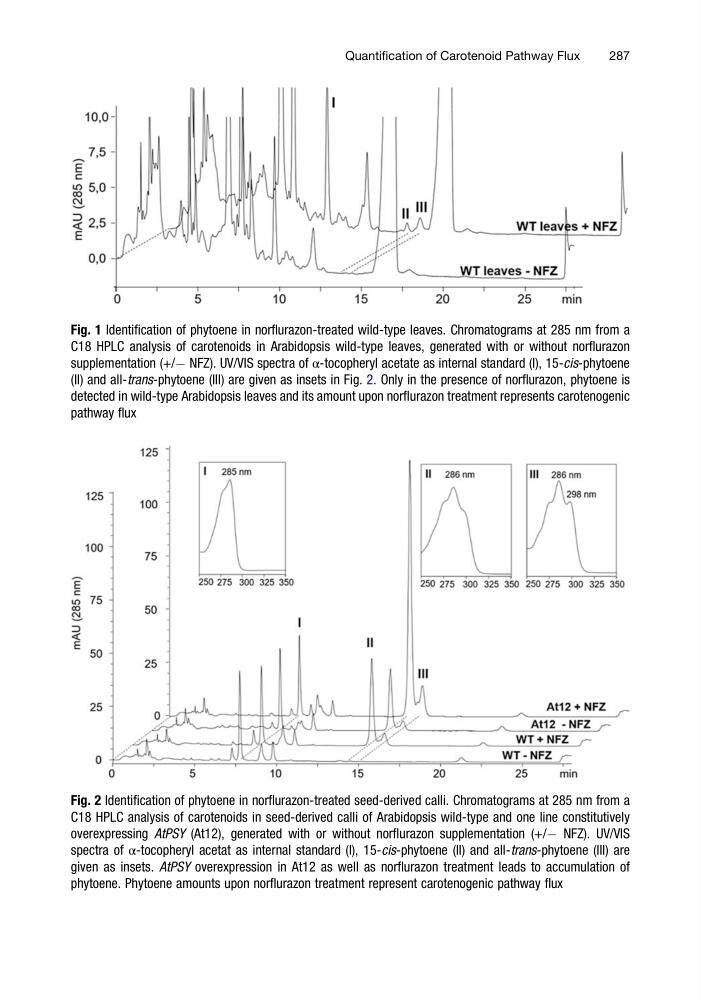

Fig. 1 Identification of phytoene in norflurazon-treated wild-type leaves. Chromatograms at 285 nm from a
C18 HPLC analysis of carotenoids in Arabidopsis wild-type leaves, generated with or without norflurazon
supplementation (+/À NFZ). UV/VIS spectra of α-tocopheryl acetate as internal standard (I), 15-cis-phytoene
(II) and all-trans-phytoene (III) are given as insets in Fig. 2. Only in the presence of norflurazon, phytoene is
detected in wild-type Arabidopsis leaves and its amount upon norflurazon treatment represents carotenogenic
pathway flux
Fig. 2 Identification of phytoene in norflurazon-treated seed-derived calli. Chromatograms at 285 nm from a
C18 HPLC analysis of carotenoids in seed-derived calli of Arabidopsis wild-type and one line constitutively
overexpressing AtPSY (At12), generated with or without norflurazon supplementation (+/À NFZ). UV/VIS
spectra of α-tocopheryl acetat as internal standard (I), 15-cis-phytoene (II) and all-trans-phytoene (III) are
given as insets. AtPSY overexpression in At12 as well as norflurazon treatment leads to accumulation of
phytoene. Phytoene amounts upon norflurazon treatment represent carotenogenic pathway flux
