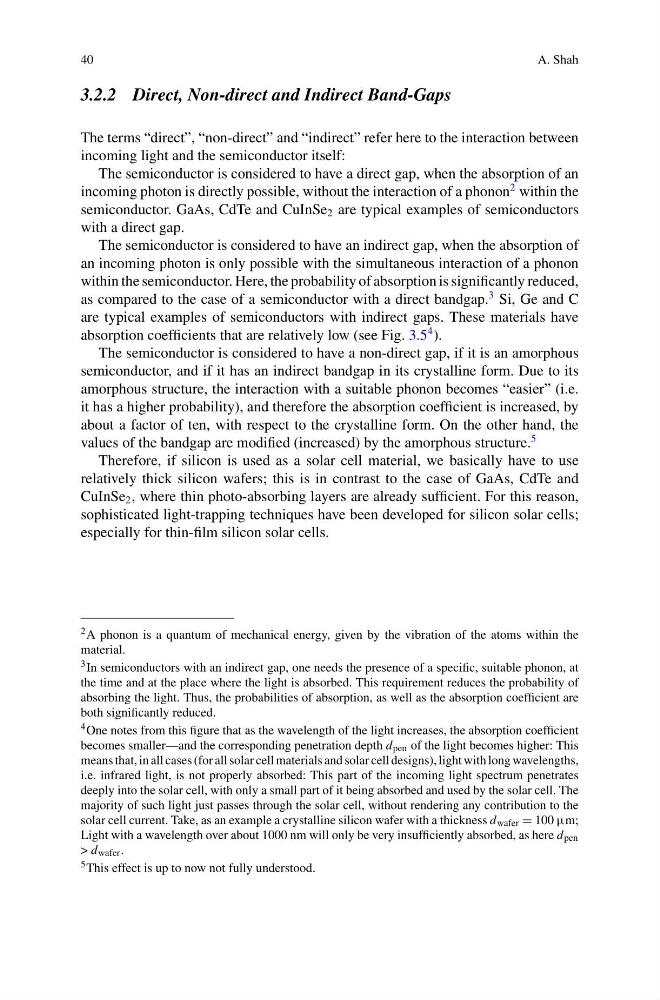

A. Shah
3.2.2 Direct, Non-direct and Indirect Band-Gaps
The terms “direct”, “non-direct” and “indirect” refer here to the interaction between
incoming light and the semiconductor itself:
The semiconductor is considered to have a direct gap, when the absorption of an
incoming photon is directly possible, without the interaction of a phonon
2 within the
semiconductor. GaAs, CdTe and CuInSe 2 are typical examples of semiconductors
with a direct gap.
The semiconductor is considered to have an indirect gap, when the absorption of
an incoming photon is only possible with the simultaneous interaction of a phonon
within the semiconductor. Here, the probability of absorption is significantly reduced,
as compared to the case of a semiconductor with a direct bandgap.
3 Si, Ge and C
are typical examples of semiconductors with indirect gaps. These materials have
absorption coefficients that are relatively low (see Fig. 3.5
4 ).
The semiconductor is considered to have a non-direct gap, if it is an amorphous
semiconductor, and if it has an indirect bandgap in its crystalline form. Due to its
amorphous structure, the interaction with a suitable phonon becomes “easier” (i.e.
it has a higher probability), and therefore the absorption coefficient is increased, by
about a factor of ten, with respect to the crystalline form. On the other hand, the
values of the bandgap are modified (increased) by the amorphous structure.
5
Therefore, if silicon is used as a solar cell material, we basically have to use
relatively thick silicon wafers; this is in contrast to the case of GaAs, CdTe and
CuInSe 2 , where thin photo-absorbing layers are already sufficient. For this reason,
sophisticated light-trapping techniques have been developed for silicon solar cells;
especially for thin-film silicon solar cells.
