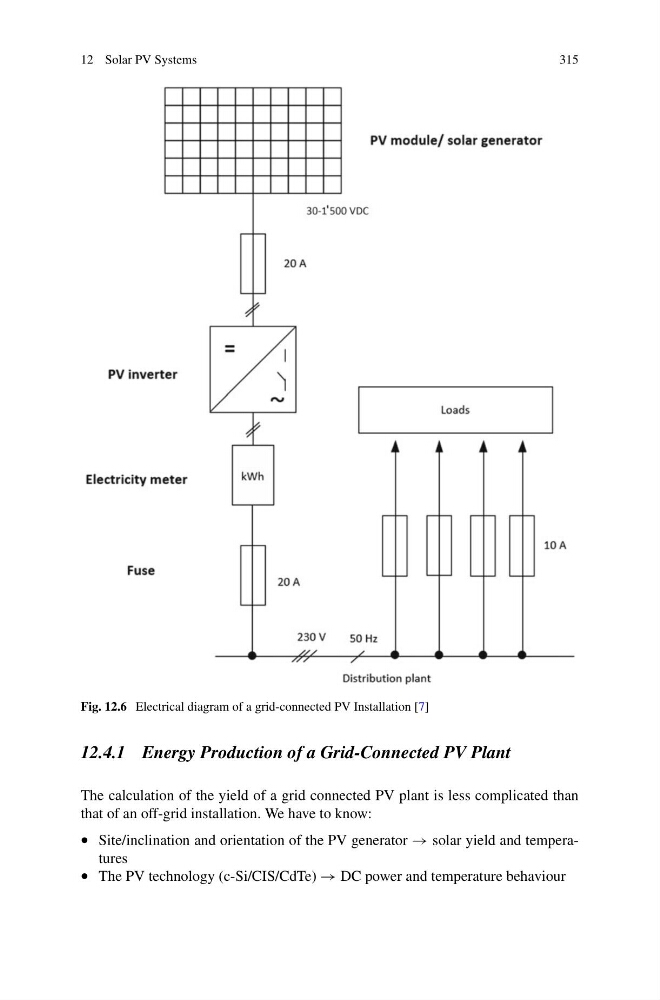

Fig. 12.6 Electrical diagram of a grid-connected PV Installation [7]
12.4.1 Energy Production of a Grid-Connected PV Plant
The calculation of the yield of a grid connected PV plant is less complicated than
that of an off-grid installation. We have to know:
• Site/inclination and orientation of the PV generator → solar yield and temperatures
• The PV technology (c-Si/CIS/CdTe) → DC power and temperature behaviour
