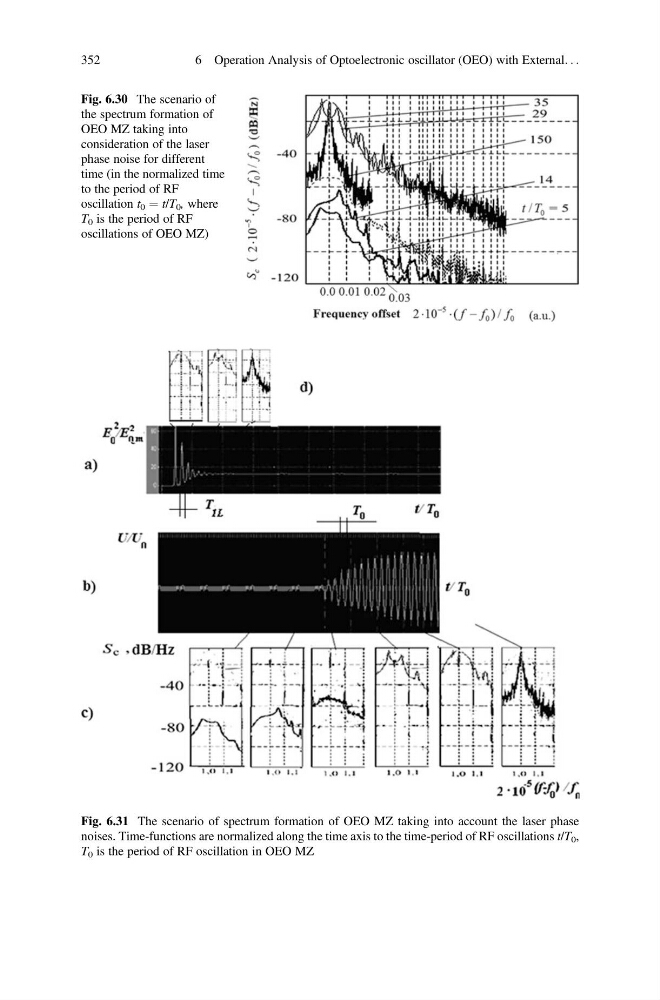

Fig. 6.30 The scenario of
the spectrum formation of
OEO MZ taking into
consideration of the laser
phase noise for different
time (in the normalized time
to the period of RF
oscillation t 0 ¼ t/T 0 , where
T 0 is the period of RF
oscillations of OEO MZ)
Fig. 6.31 The scenario of spectrum formation of OEO MZ taking into account the laser phase
noises. Time-functions are normalized along the time axis to the time-period of RF oscillations t/T 0 ,
T 0 is the period of RF oscillation in OEO MZ
352
6 Operation Analysis of Optoelectronic oscillator (OEO) with External. . .
