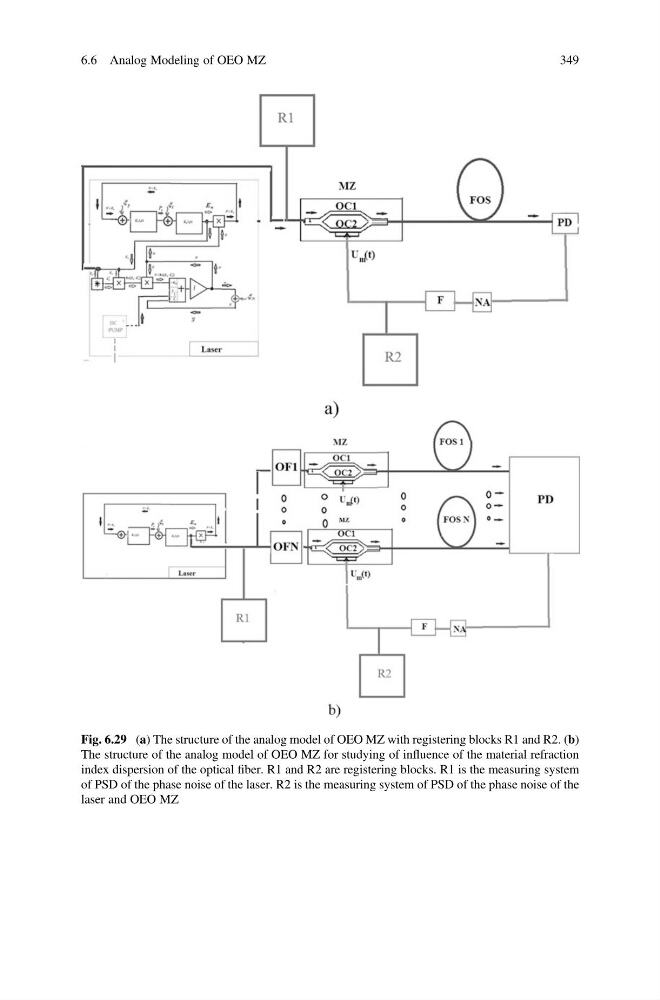

Fig. 6.29 (a) The structure of the analog model of OEO MZ with registering blocks R1 and R2. (b)
The structure of the analog model of OEO MZ for studying of influence of the material refraction
index dispersion of the optical fiber. R1 and R2 are registering blocks. R1 is the measuring system
of PSD of the phase noise of the laser. R2 is the measuring system of PSD of the phase noise of the
laser and OEO MZ
