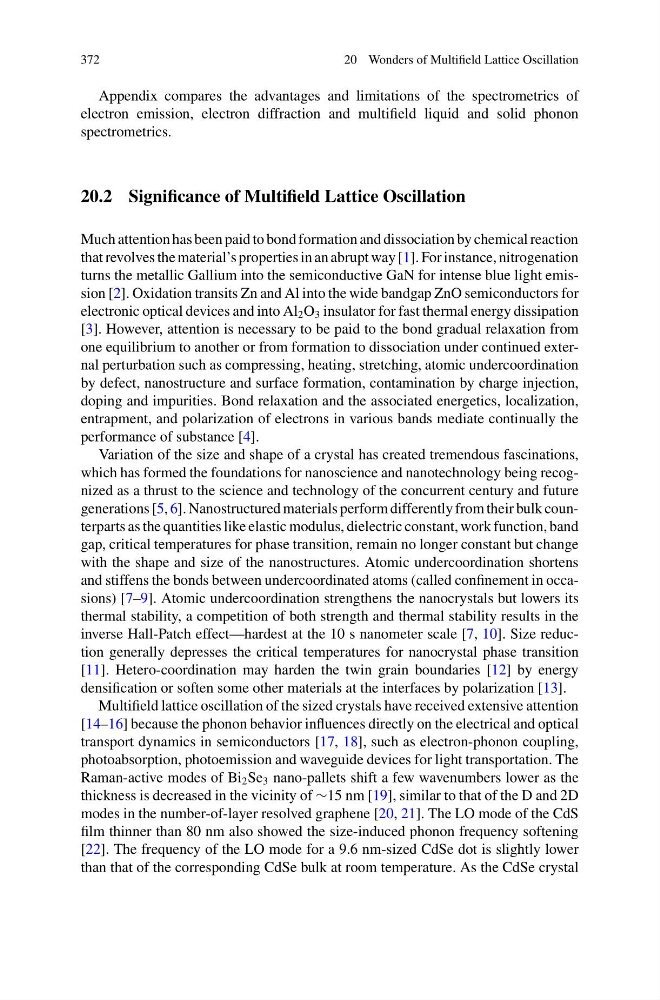

372
20 Wonders of Multifield Lattice Oscillation
Appendix compares the advantages and limitations of the spectrometrics of
electron emission, electron diffraction and multifield liquid and solid phonon
spectrometrics.
20.2 Significance of Multifield Lattice Oscillation
Much attention has been paid to bond formation and dissociation by chemical reaction
that revolves the material’s properties in an abrupt way [1]. For instance, nitrogenation
turns the metallic Gallium into the semiconductive GaN for intense blue light emission [2]. Oxidation transits Zn and Al into the wide bandgap ZnO semiconductors for
electronic optical devices and into Al 2 O 3 insulator for fast thermal energy dissipation
[3]. However, attention is necessary to be paid to the bond gradual relaxation from
one equilibrium to another or from formation to dissociation under continued external perturbation such as compressing, heating, stretching, atomic undercoordination
by defect, nanostructure and surface formation, contamination by charge injection,
doping and impurities. Bond relaxation and the associated energetics, localization,
entrapment, and polarization of electrons in various bands mediate continually the
performance of substance [4].
Variation of the size and shape of a crystal has created tremendous fascinations,
which has formed the foundations for nanoscience and nanotechnology being recognized as a thrust to the science and technology of the concurrent century and future
generations [5, 6]. Nanostructured materials perform differently from their bulk counterparts as the quantities like elastic modulus, dielectric constant, work function, band
gap, critical temperatures for phase transition, remain no longer constant but change
with the shape and size of the nanostructures. Atomic undercoordination shortens
and stiffens the bonds between undercoordinated atoms (called confinement in occasions) [7–9]. Atomic undercoordination strengthens the nanocrystals but lowers its
thermal stability, a competition of both strength and thermal stability results in the
inverse Hall-Patch effect—hardest at the 10 s nanometer scale [7, 10]. Size reduction generally depresses the critical temperatures for nanocrystal phase transition
[11]. Hetero-coordination may harden the twin grain boundaries [12] by energy
densification or soften some other materials at the interfaces by polarization [13].
Multifield lattice oscillation of the sized crystals have received extensive attention
[14–16] because the phonon behavior influences directly on the electrical and optical
transport dynamics in semiconductors [17, 18], such as electron-phonon coupling,
photoabsorption, photoemission and waveguide devices for light transportation. The
Raman-active modes of Bi 2 Se 3 nano-pallets shift a few wavenumbers lower as the
thickness is decreased in the vicinity of ∼15 nm [19], similar to that of the D and 2D
modes in the number-of-layer resolved graphene [20, 21]. The LO mode of the CdS
film thinner than 80 nm also showed the size-induced phonon frequency softening
[22]. The frequency of the LO mode for a 9.6 nm-sized CdSe dot is slightly lower
than that of the corresponding CdSe bulk at room temperature. As the CdSe crystal
