10 Signal Processing for Particle Detectors
443

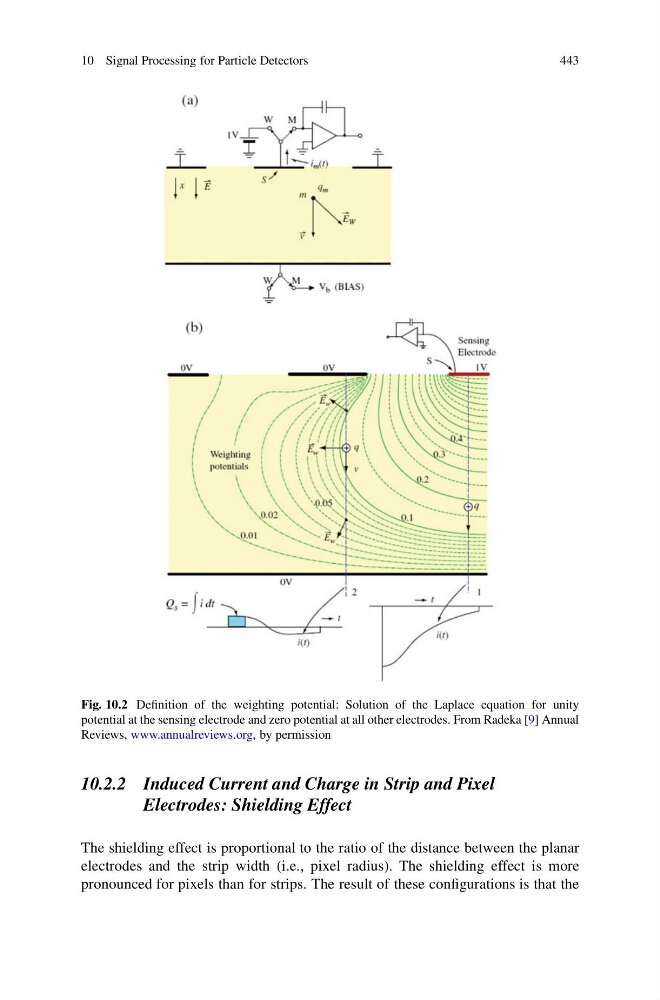

Fig. 10.2 Definition of the weighting potential: Solution of the Laplace equation for unity
potential at the sensing electrode and zero potential at all other electrodes. From Radeka [9] Annual
Reviews, www.annualreviews.org, by permission
10.2.2 Induced Current and Charge in Strip and Pixel
Electrodes: Shielding Effect
The shielding effect is proportional to the ratio of the distance between the planar
electrodes and the strip width (i.e., pixel radius). The shielding effect is more
pronounced for pixels than for strips. The result of these configurations is that the
443
Fig. 10.2 Definition of the weighting potential: Solution of the Laplace equation for unity
potential at the sensing electrode and zero potential at all other electrodes. From Radeka [9] Annual
Reviews, www.annualreviews.org, by permission
10.2.2 Induced Current and Charge in Strip and Pixel
Electrodes: Shielding Effect
The shielding effect is proportional to the ratio of the distance between the planar
electrodes and the strip width (i.e., pixel radius). The shielding effect is more
pronounced for pixels than for strips. The result of these configurations is that the
