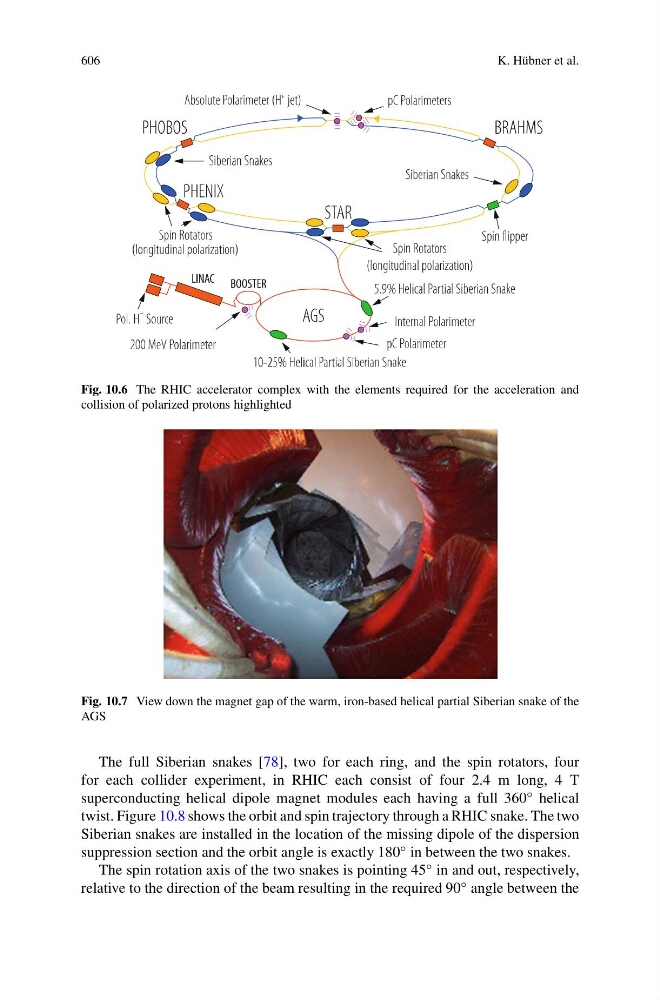

Fig. 10.6 The RHIC accelerator complex with the elements required for the acceleration and
collision of polarized protons highlighted
Fig. 10.7 View down the magnet gap of the warm, iron-based helical partial Siberian snake of the
AGS
The full Siberian snakes [78], two for each ring, and the spin rotators, four
for each collider experiment, in RHIC each consist of four 2.4 m long, 4 T
superconducting helical dipole magnet modules each having a full 360 ◦ helical
twist. Figure 10.8 shows the orbit and spin trajectory through a RHIC snake. The two
Siberian snakes are installed in the location of the missing dipole of the dispersion
suppression section and the orbit angle is exactly 180 ◦ in between the two snakes.
The spin rotation axis of the two snakes is pointing 45 ◦ in and out, respectively,
relative to the direction of the beam resulting in the required 90 ◦ angle between the
