40
2 Methods for Investigating Electro-Chemo-Mechanical …
potential change have been recently developed. The present chapter deals with the
principles and features of several methods powerful for investigating the electrochemo-mechanical properties of solid electrode surfaces.
2.2 Piezoelectric Detection of Differential Surface Stress
Gokhshtein [2–4] is the pioneer to measure the differential surface stress of a solid
electrode by using a device consisting of mechanically connected piezoelectric plate
and over-meniscus working metal electrode. Figure 2.1 shows the experimental setup
of the device for measuring the differential surface stress (simultaneously at two

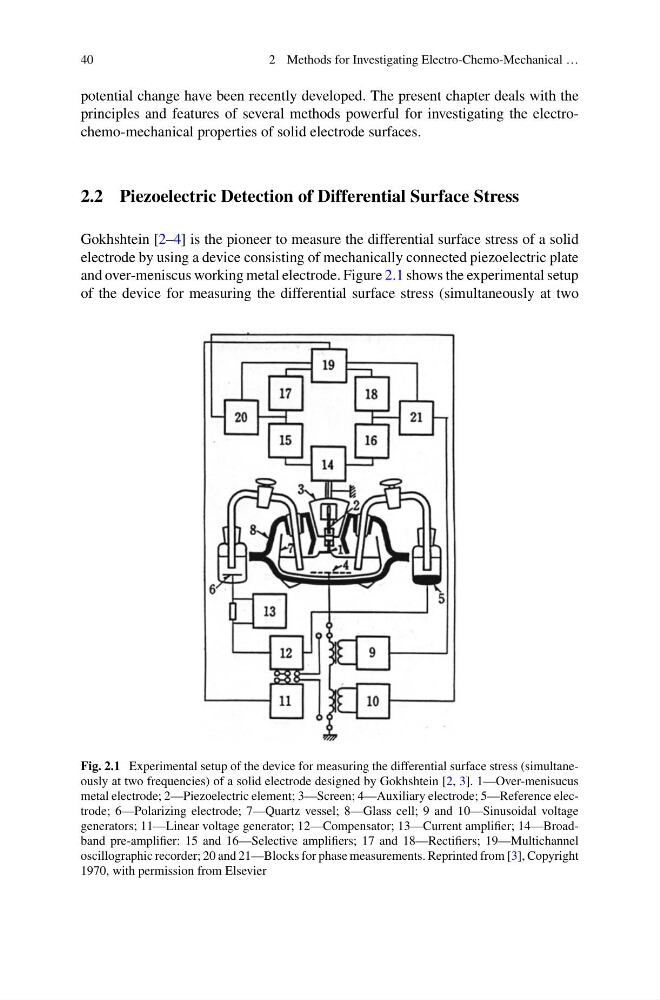

Fig. 2.1 Experimental setup of the device for measuring the differential surface stress (simultaneously at two frequencies) of a solid electrode designed by Gokhshtein [2, 3]. 1—Over-menisucus
metal electrode; 2—Piezoelectric element; 3—Screen; 4—Auxiliary electrode; 5—Reference electrode; 6—Polarizing electrode; 7—Quartz vessel; 8—Glass cell; 9 and 10—Sinusoidal voltage
generators; 11—Linear voltage generator; 12—Compensator; 13—Current amplifier; 14—Broadband pre-amplifier: 15 and 16—Selective amplifiers; 17 and 18—Rectifiers; 19—Multichannel
oscillographic recorder; 20 and 21—Blocks for phase measurements. Reprinted from [3], Copyright
1970, with permission from Elsevier
