5.1 Panel flexure
85
simulations models once again indicate local core indentation, while the detailed model
achieves higher strengths.

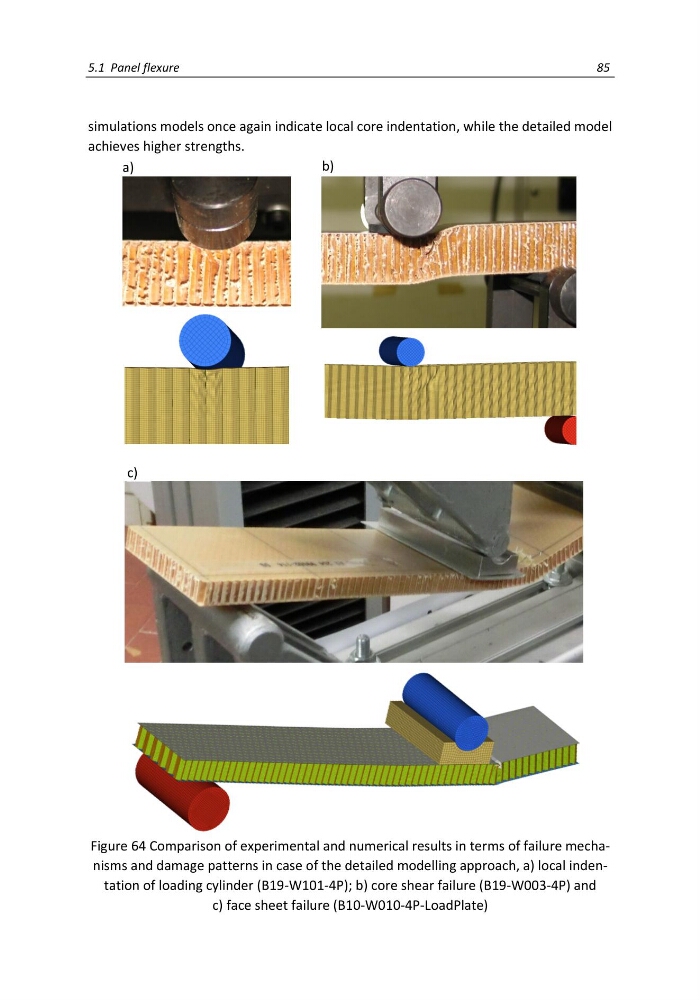

Figure 64 Comparison of experimental and numerical results in terms of failure mechanisms and damage patterns in case of the detailed modelling approach, a) local indentation of loading cylinder (B19-W101-4P); b) core shear failure (B19-W003-4P) and
c) face sheet failure (B10-W010-4P-LoadPlate)
a)
b)
c)
