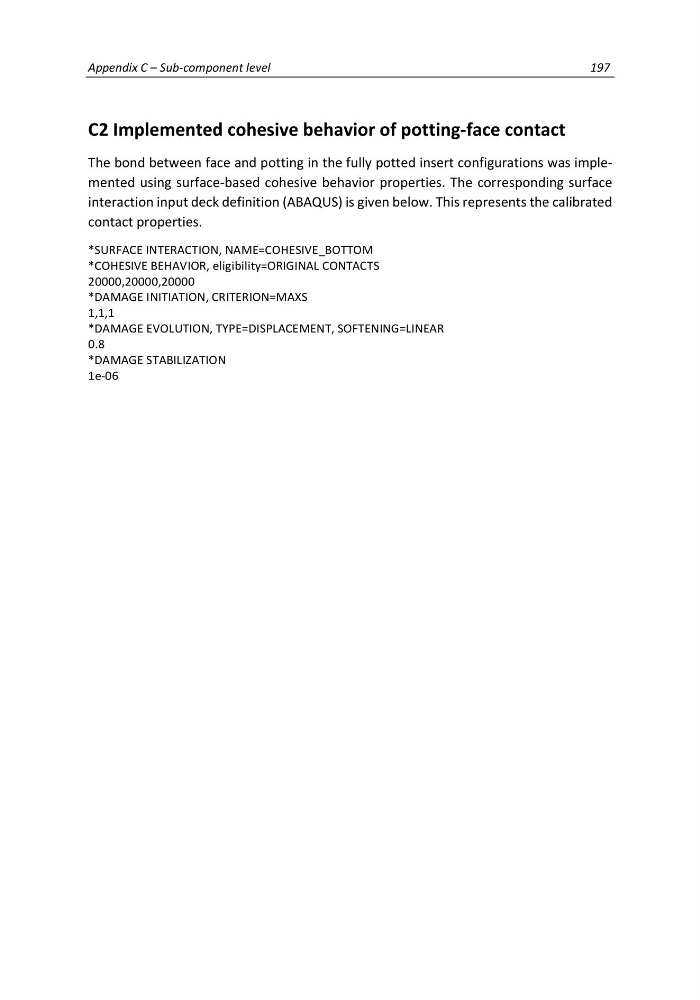

C2 Implemented cohesive behavior of potting-face contact
The bond between face and potting in the fully potted insert configurations was implemented using surface-based cohesive behavior properties. The corresponding surface
interaction input deck definition (ABAQUS) is given below. This represents the calibrated
contact properties.
*SURFACE INTERACTION, NAME=COHESIVE_BOTTOM
*COHESIVE BEHAVIOR, eligibility=ORIGINAL CONTACTS
20000,20000,20000
*DAMAGE INITIATION, CRITERION=MAXS
1,1,1
*DAMAGE EVOLUTION, TYPE=DISPLACEMENT, SOFTENING=LINEAR
0.8
*DAMAGE STABILIZATION
1e-06
