B3 Frame shear test details

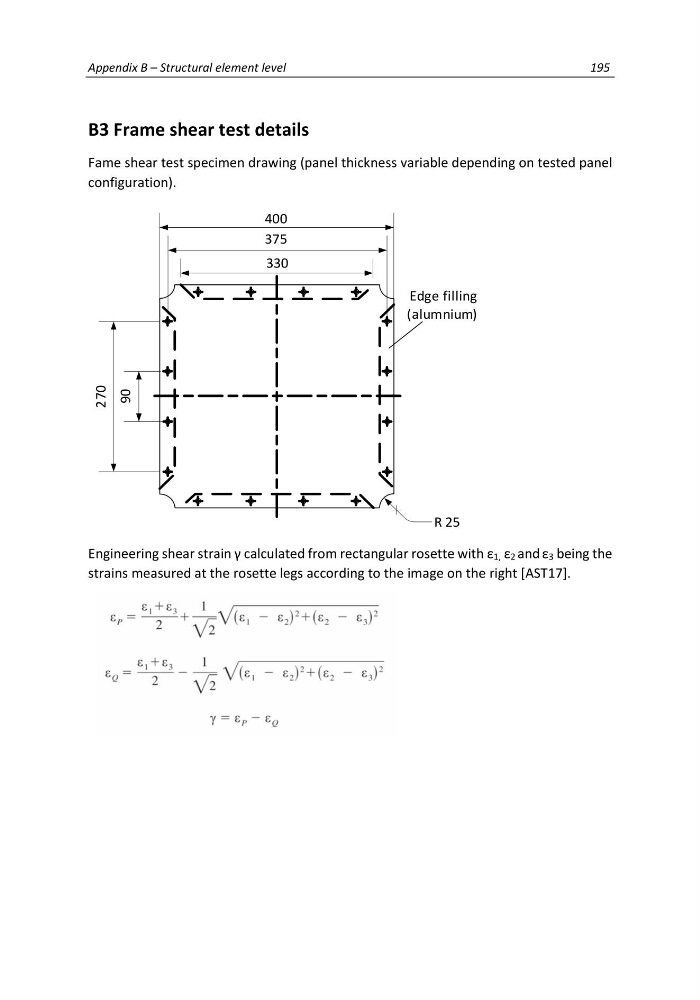

Fame shear test specimen drawing (panel thickness variable depending on tested panel
configuration).
330
375
400
270
90
R 25
Edge filling
(alumnium)
Engineering shear strain γ calculated from rectangular rosette with ε 1, ε 2 and ε 3 being the
strains measured at the rosette legs according to the image on the right [AST17].
