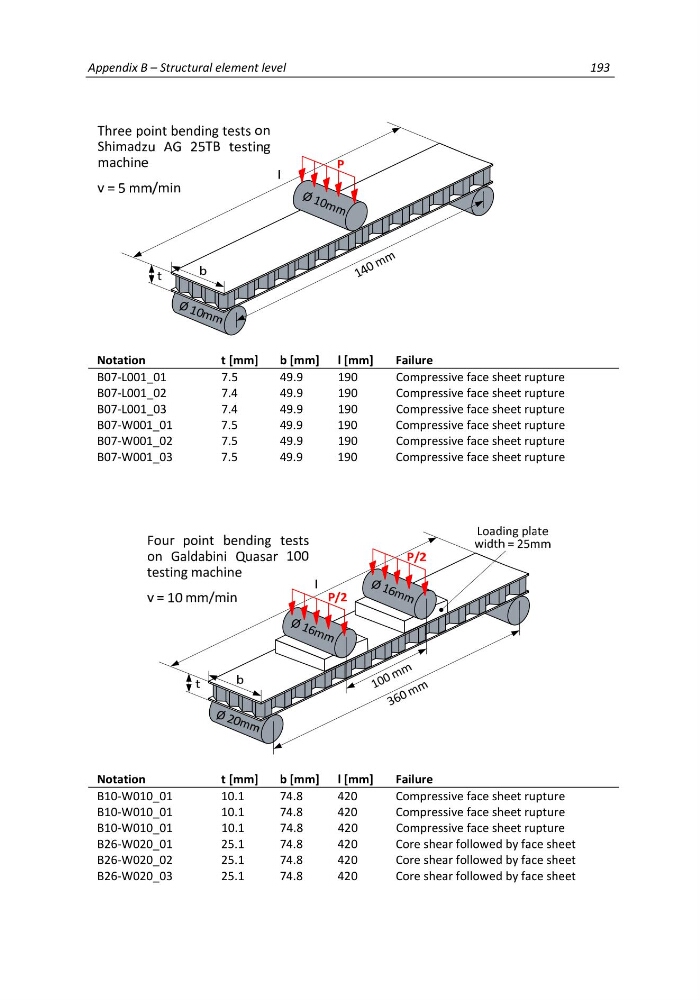

Appendix B – Structural element level
193
Notation
t [mm]
b [mm] l [mm]
Failure
B07-L001_01
7.5
49.9
190
Compressive face sheet rupture
B07-L001_02
7.4
49.9
190
Compressive face sheet rupture
B07-L001_03
7.4
49.9
190
Compressive face sheet rupture
B07-W001_01
7.5
49.9
190
Compressive face sheet rupture
B07-W001_02
7.5
49.9
190
Compressive face sheet rupture
B07-W001_03
7.5
49.9
190
Compressive face sheet rupture
Notation
t [mm]
b [mm] l [mm]
Failure
B10-W010_01
10.1
74.8
420
Compressive face sheet rupture
B10-W010_01
10.1
74.8
420
Compressive face sheet rupture
B10-W010_01
10.1
74.8
420
Compressive face sheet rupture
B26-W020_01
25.1
74.8
420
Core shear followed by face sheet
B26-W020_02
25.1
74.8
420
Core shear followed by face sheet
B26-W020_03
25.1
74.8
420
Core shear followed by face sheet
