80

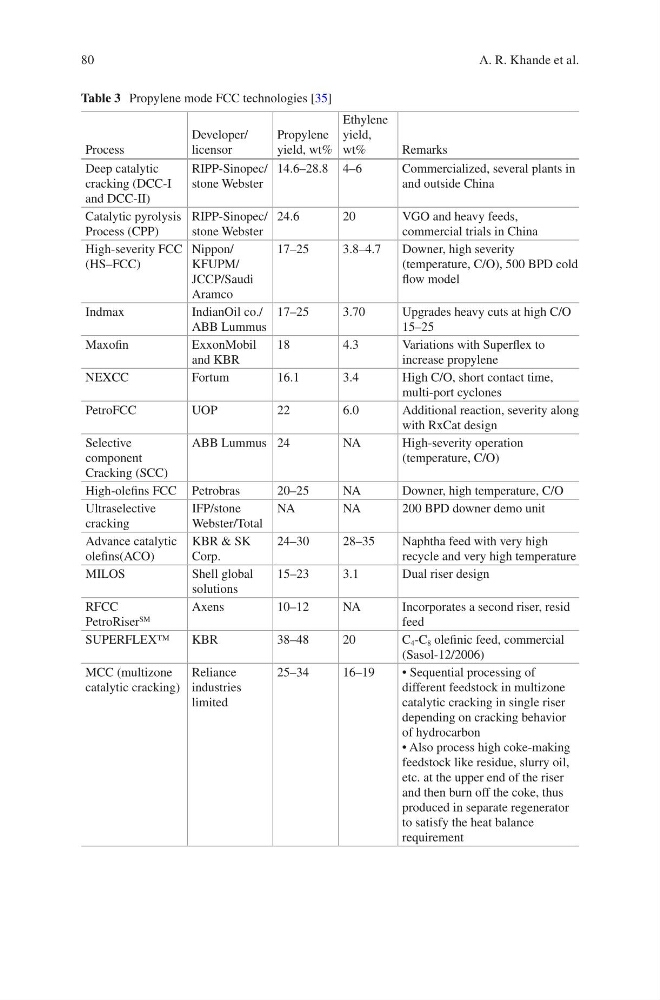

Table 3 Propylene mode FCC technologies [35]
Process
Developer/
licensor
Propylene
yield, wt%
Ethylene
yield,
wt%
Remarks
Deep catalytic
cracking (DCC-I
and DCC-II)
RIPP-Sinopec/
stone Webster
14.6–28.8 4–6
Commercialized, several plants in
and outside China
Catalytic pyrolysis
Process (CPP)
RIPP-Sinopec/
stone Webster
24.6
20
VGO and heavy feeds,
commercial trials in China
High-severity FCC
(HS–FCC)
Nippon/
KFUPM/
JCCP/Saudi
Aramco
17–25
3.8–4.7
Downer, high severity
(temperature, C/O), 500 BPD cold
flow model
Indmax
IndianOil co./
ABB Lummus
17–25
3.70
Upgrades heavy cuts at high C/O
15–25
Maxofin
ExxonMobil
and KBR
18
4.3
Variations with Superflex to
increase propylene
NEXCC
Fortum
16.1
3.4
High C/O, short contact time,
multi-port cyclones
PetroFCC
UOP
22
6.0
Additional reaction, severity along
with RxCat design
Selective
component
Cracking (SCC)
ABB Lummus 24
NA
High-severity operation
(temperature, C/O)
High-olefins FCC Petrobras
20–25
NA
Downer, high temperature, C/O
Ultraselective
cracking
IFP/stone
Webster/Total
NA
NA
200 BPD downer demo unit
Advance catalytic
olefins(ACO)
KBR & SK
Corp.
24–30
28–35
Naphtha feed with very high
recycle and very high temperature
MILOS
Shell global
solutions
15–23
3.1
Dual riser design
RFCC
PetroRiser
SM
Axens
10–12
NA
Incorporates a second riser, resid
feed
SUPERFLEX™
KBR
38–48
20
C 4 -C 8 olefinic feed, commercial
(Sasol-12/2006)
MCC (multizone
catalytic cracking)
Reliance
industries
limited
25–34
16–19
• Sequential processing of
different feedstock in multizone
catalytic cracking in single riser
depending on cracking behavior
of hydrocarbon
• Also process high coke-making
feedstock like residue, slurry oil,
etc. at the upper end of the riser
and then burn off the coke, thus
produced in separate regenerator
to satisfy the heat balance
requirement
A. R. Khande et al.
