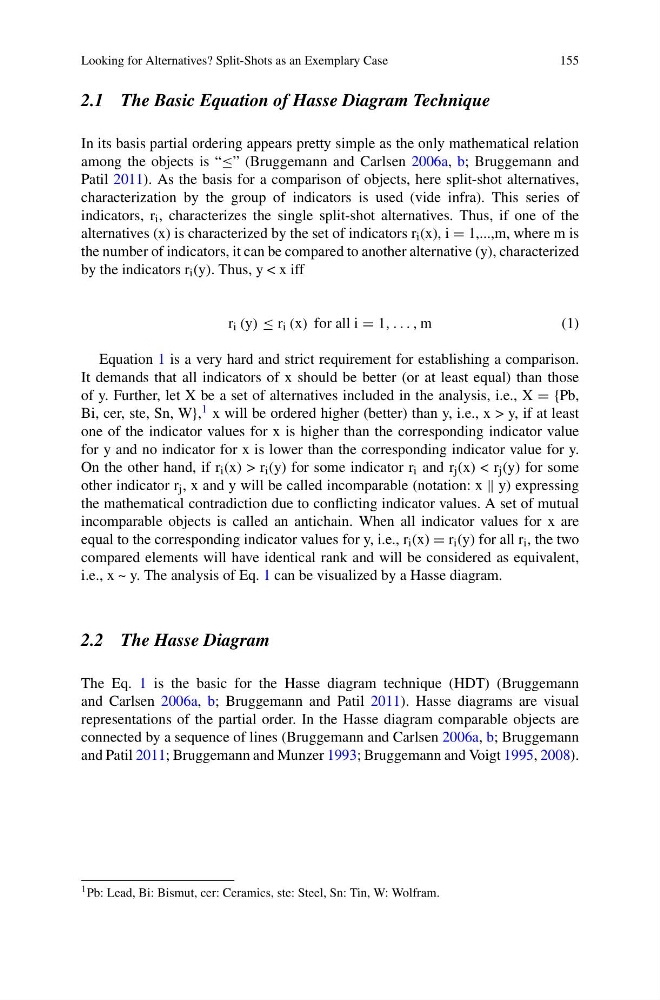

2.1 The Basic Equation of Hasse Diagram Technique
In its basis partial ordering appears pretty simple as the only mathematical relation
among the objects is “≤” (Bruggemann and Carlsen 2006a, b; Bruggemann and
Patil 2011). As the basis for a comparison of objects, here split-shot alternatives,
characterization by the group of indicators is used (vide infra). This series of
indicators, r i , characterizes the single split-shot alternatives. Thus, if one of the
alternatives (x) is characterized by the set of indicators r i (x), i = 1,...,m, where m is
the number of indicators, it can be compared to another alternative (y), characterized
by the indicators r i (y). Thus, y < x iff
r i (y) ≤ r i (x) for all i = 1, . . . , m
( 1 )
Equation 1 is a very hard and strict requirement for establishing a comparison.
It demands that all indicators of x should be better (or at least equal) than those
of y. Further, let X be a set of alternatives included in the analysis, i.e., X = {Pb,
Bi, cer, ste, Sn, W}, 1 x will be ordered higher (better) than y, i.e., x > y, if at least
one of the indicator values for x is higher than the corresponding indicator value
for y and no indicator for x is lower than the corresponding indicator value for y.
On the other hand, if r i (x) > r i (y) for some indicator r i and r j (x) < r j (y) for some
other indicator r j , x and y will be called incomparable (notation: x || y) expressing
the mathematical contradiction due to conflicting indicator values. A set of mutual
incomparable objects is called an antichain. When all indicator values for x are
equal to the corresponding indicator values for y, i.e., r i (x) = r i (y) for all r i , the two
compared elements will have identical rank and will be considered as equivalent,
i.e., x ~ y. The analysis of Eq. 1 can be visualized by a Hasse diagram.
2.2 The Hasse Diagram
The Eq. 1 is the basic for the Hasse diagram technique (HDT) (Bruggemann
and Carlsen 2006a, b; Bruggemann and Patil 2011). Hasse diagrams are visual
representations of the partial order. In the Hasse diagram comparable objects are
connected by a sequence of lines (Bruggemann and Carlsen 2006a, b; Bruggemann
and Patil 2011; Bruggemann and Munzer 1993; Bruggemann and Voigt 1995, 2008).
