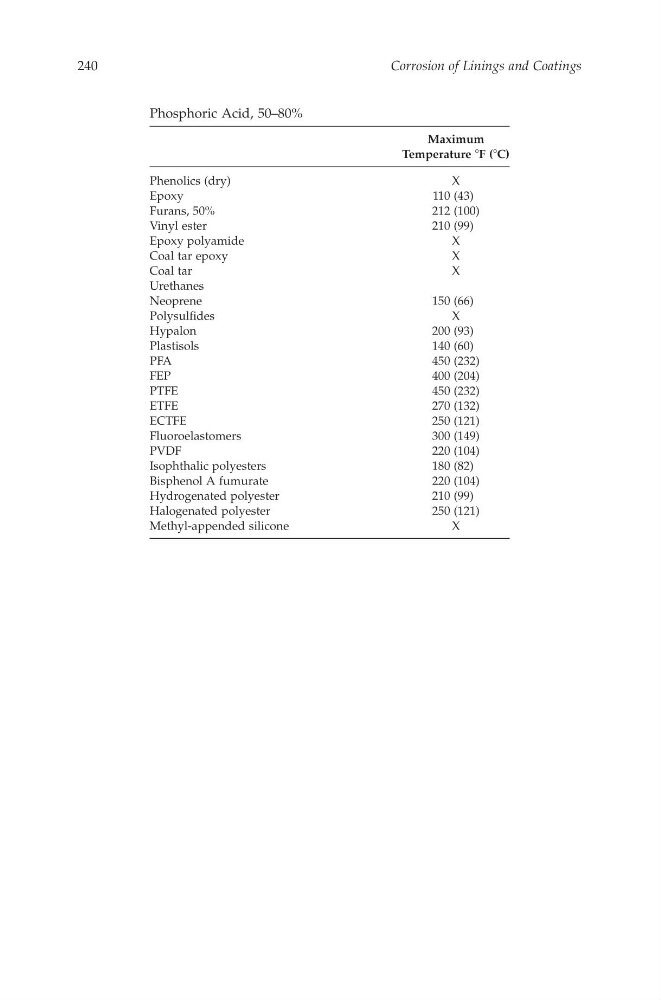

Phosphoric Acid, 50–80%
Maximum
Te mperature 8 F( 8 C)
Phenolics (dry)
X
Epoxy
110(43)
Furans, 50%
212 (100)
Vinyl ester
210 (99)
Epoxy polyamide
X
Coal tar epoxy
X
Coal tar
X
Urethanes
Neoprene
150 (66)
Polysulfides
X
Hypalon
200 (93)
Plastisols
140 (60)
PFA4 50 (232)
FEP
400 (204)
PTFE
450 (232)
ETFE
270 (132)
ECTFE
250 (121)
Fluoroelastomers
300 (149)
PVDF
220 (104)
Isophthalic polyesters1 80 (82)
Bisphenol Af umurate
220 (104)
Hydrogenated polyester
210 (99)
Halogenated polyester
250 (121)
Methyl-appended silicone
X
Corrosion of Linings and Coatings
