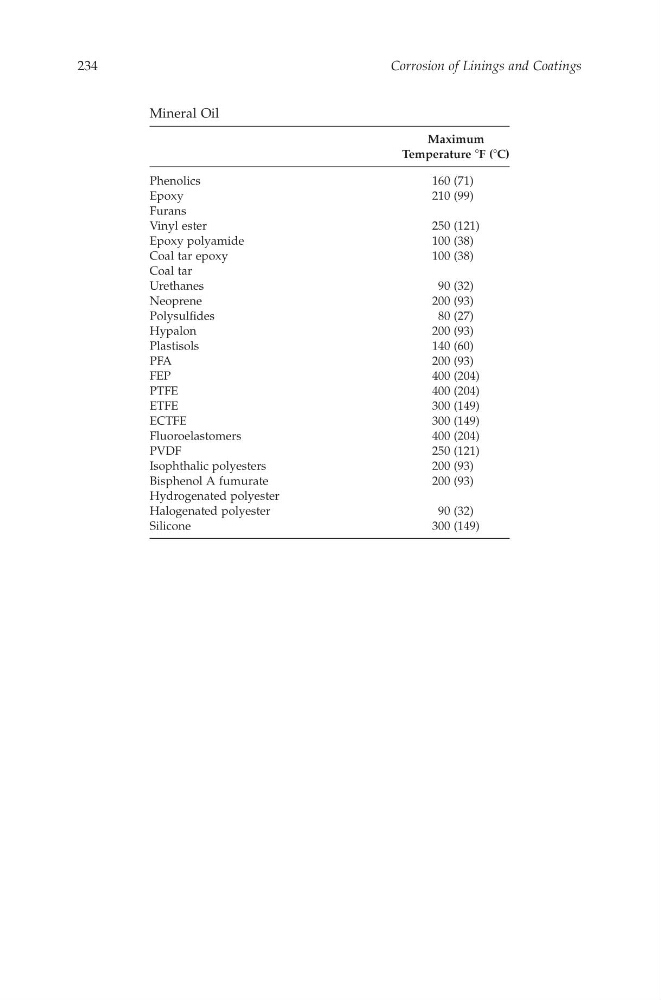

Mineral Oil
Maximum
Te mperature 8 F( 8 C)
Phenolics
160 (71)
Epoxy
210 (99)
Furans
Vinyl ester
250 (121)
Epoxy polyamide
100 (38)
Coal tar epoxy
100 (38)
Coal tar
Urethanes
90 (32)
Neoprene
200 (93)
Polysulfides
80 (27)
Hypalon
200 (93)
Plastisols
140 (60)
PFA2 00 (93)
FEP
400 (204)
PTFE
400 (204)
ETFE
300 (149)
ECTFE
300 (149)
Fluoroelastomers
400 (204)
PVDF
250 (121)
Isophthalic polyesters2 00 (93)
Bisphenol Af umurate
200 (93)
Hydrogenated polyester
Halogenated polyester
90 (32)
Silicone
300 (149)
Corrosion of Linings and Coatings
