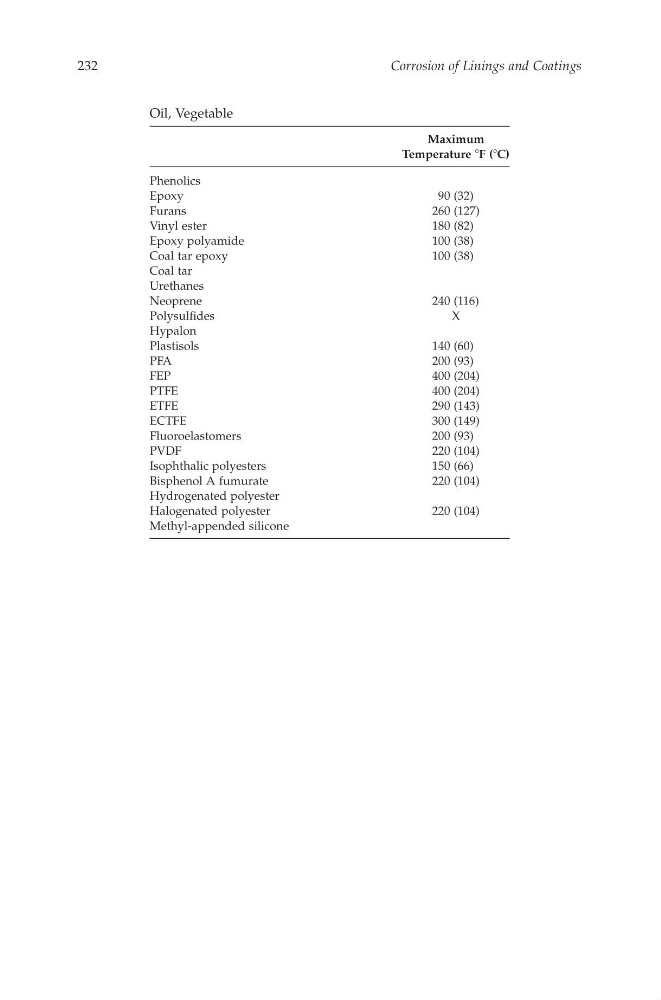

Oil, Vegetable
Maximum
Te mperature 8 F( 8 C)
Phenolics
Epoxy
90 (32)
Furans
260 (127)
Vinyl ester
180 (82)
Epoxy polyamide
100 (38)
Coal tar epoxy
100 (38)
Coal tar
Urethanes
Neoprene
240 (116)
Polysulfides
X
Hypalon
Plastisols
140 (60)
PFA2 00 (93)
FEP
400 (204)
PTFE
400 (204)
ETFE
290 (143)
ECTFE
300 (149)
Fluoroelastomers
200 (93)
PVDF
220 (104)
Isophthalic polyesters1 50 (66)
Bisphenol Af umurate
220 (104)
Hydrogenated polyester
Halogenated polyester
220 (104)
Methyl-appended silicone
Corrosion of Linings and Coatings
232
