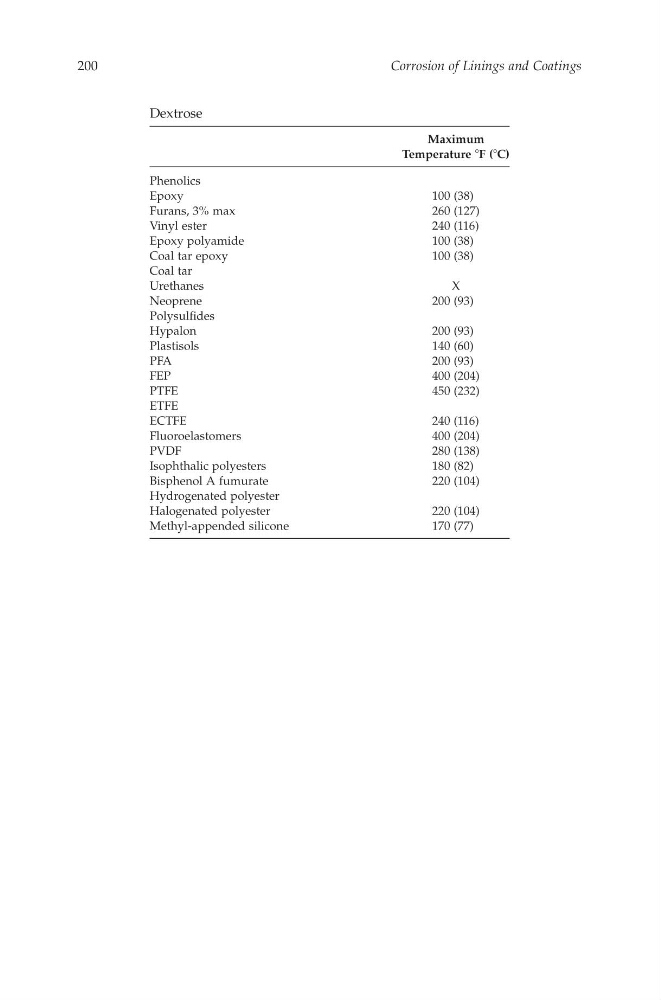

Dextrose
Maximum
Te mperature 8 F( 8 C)
Phenolics
Epoxy
100 (38)
Furans, 3% max
260 (127)
Vinyl ester
240 (116)
Epoxy polyamide
100 (38)
Coal tar epoxy
100 (38)
Coal tar
Urethanes
X
Neoprene
200 (93)
Polysulfides
Hypalon
200 (93)
Plastisols
140 (60)
PFA2 00 (93)
FEP
400 (204)
PTFE
450 (232)
ETFE
ECTFE
240 (116)
Fluoroelastomers
400 (204)
PVDF
280 (138)
Isophthalic polyesters1 80 (82)
Bisphenol Af umurate
220 (104)
Hydrogenated polyester
Halogenated polyester
220 (104)
Methyl-appended silicone
170 (77)
Corrosion of Linings and Coatings
200
