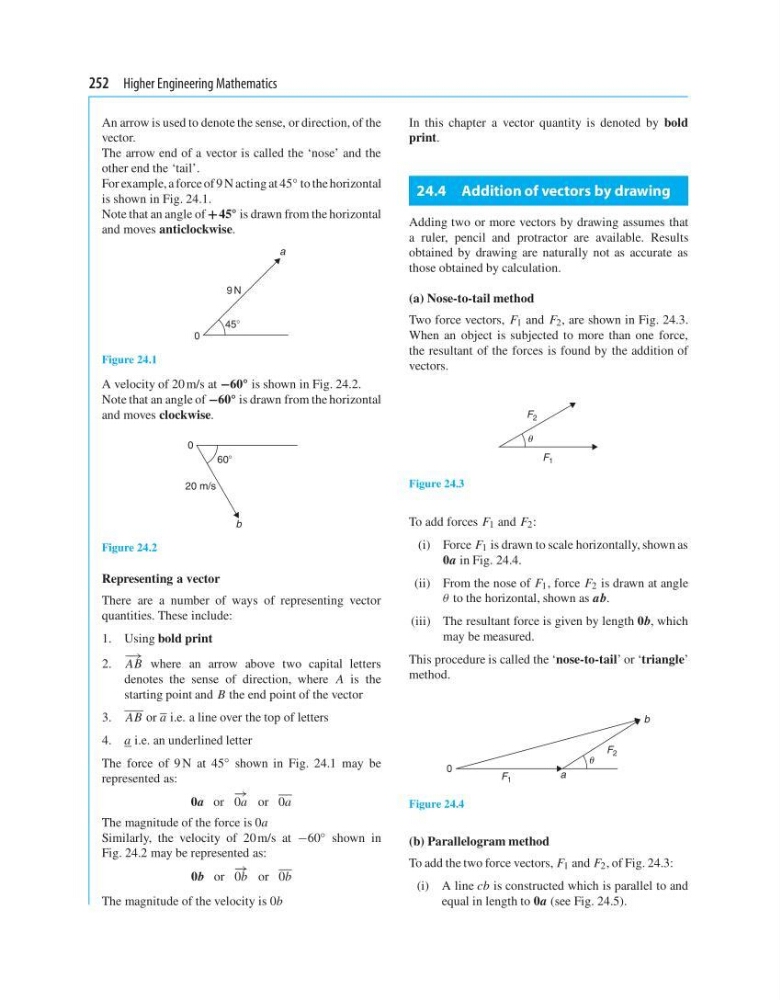

252 Higher Engineering Mathematics
An arrow is used to denote the sense, or direction, of the
vector.
The arrow end of a vector is called the ‘nose’ and the
other end the ‘tail’.
For example, a force of 9 N acting at 45 ◦ to the horizontal
is shown in Fig. 24.1.
Note that an angle of + 45
◦ is drawn from the horizontal
and moves anticlockwise.
9 N
0
a
458
Figure 24.1
A velocity of 20 m/s at −60
◦ is shown in Fig. 24.2.
Note that an angle of −60 ◦ is drawn from the horizontal
and moves clockwise.
60Њ
20 m/s
0
b
Figure 24.2
Representing a vector
There are a number of ways of representing vector
quantities. These include:
1. Using bold print
2.
− →
AB where an arrow above two capital letters
denotes the sense of direction, where A is the
starting point and B the end point of the vector
3. AB or a i.e. a line over the top of letters
4. a i.e. an underlined letter
The force of 9N at 45 ◦ shown in Fig. 24.1 may be
represented as:
0a or
− →
0a or 0a
The magnitude of the force is 0a
Similarly, the velocity of 20 m/s at −60 ◦ shown in
Fig. 24.2 may be represented as:
0b or
− →
0b or 0b
The magnitude of the velocity is 0b
In this chapter a vector quantity is denoted by bold
print.
24.4 Addition of vectors by drawing
Adding two or more vectors by drawing assumes that
a ruler, pencil and protractor are available. Results
obtained by drawing are naturally not as accurate as
those obtained by calculation.
(a) Nose-to-tail method
Two force vectors, F 1 and F 2 , are shown in Fig. 24.3.
When an object is subjected to more than one force,
the resultant of the forces is found by the addition of
vectors.
F 2
F 1
Figure 24.3
To add forces F 1 and F 2 :
(i) Force F 1 is drawn to scale horizontally, shown as
0a in Fig. 24.4.
(ii) From the nose of F 1 , force F 2 is drawn at angle
θ to the horizontal, shown as ab.
(iii) The resultant force is given by length 0b, which
may be measured.
This procedure is called the ‘nose-to-tail’ or ‘triangle’
method.
F 2
F 1
a
b
0
Figure 24.4
(b) Parallelogram method
To add the two force vectors, F 1 and F 2 , of Fig. 24.3:
(i) A line cb is constructed which is parallel to and
equal in length to 0a (see Fig. 24.5).
