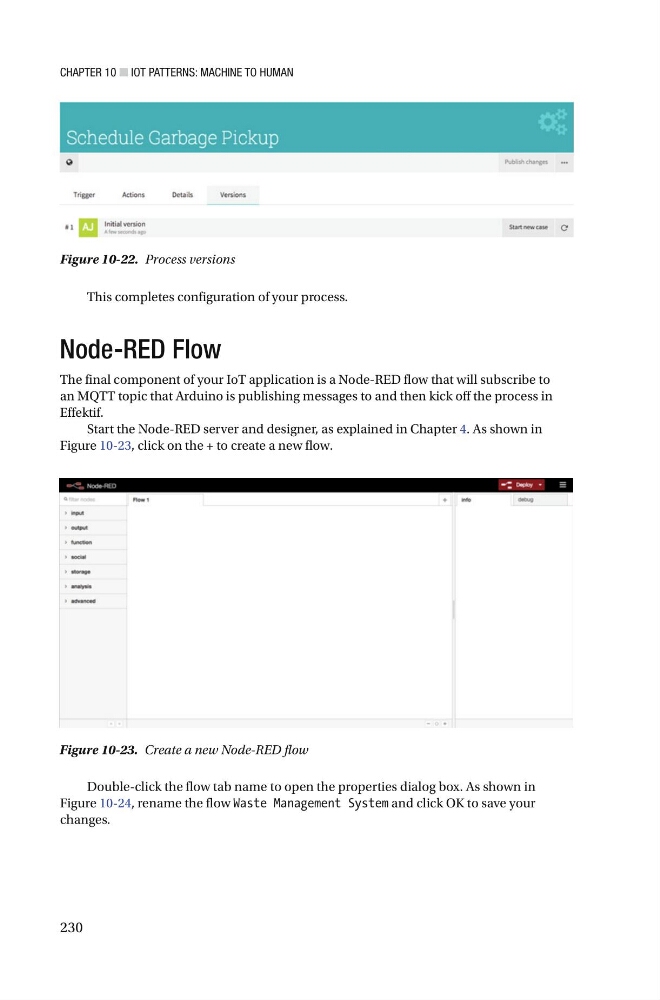

CHAPTER 10 ■ IOT PATTERNS: MACHINE TO HUMAN
230
This completes configuration of your process.
Node-RED Flow
The final component of your IoT application is a Node-RED flow that will subscribe to
an MQTT topic that Arduino is publishing messages to and then kick off the process in
Effektif.
Start the Node-RED server and designer, as explained in Chapter 4 . As shown in
Figure 10-23 , click on the + to create a new flow .
Figure 10-22. Process versions
Figure 10-23. Create a new Node-RED flow
Double-click the flow tab name to open the properties dialog box. As shown in
Figure 10-24 , rename the flow Waste Management System and click OK to save your
changes.
